Snubbing BOP

Snubbing pressure control equipment is available for your workover applications. We manufacture a full range of equipment for the workover environment and well interventions.

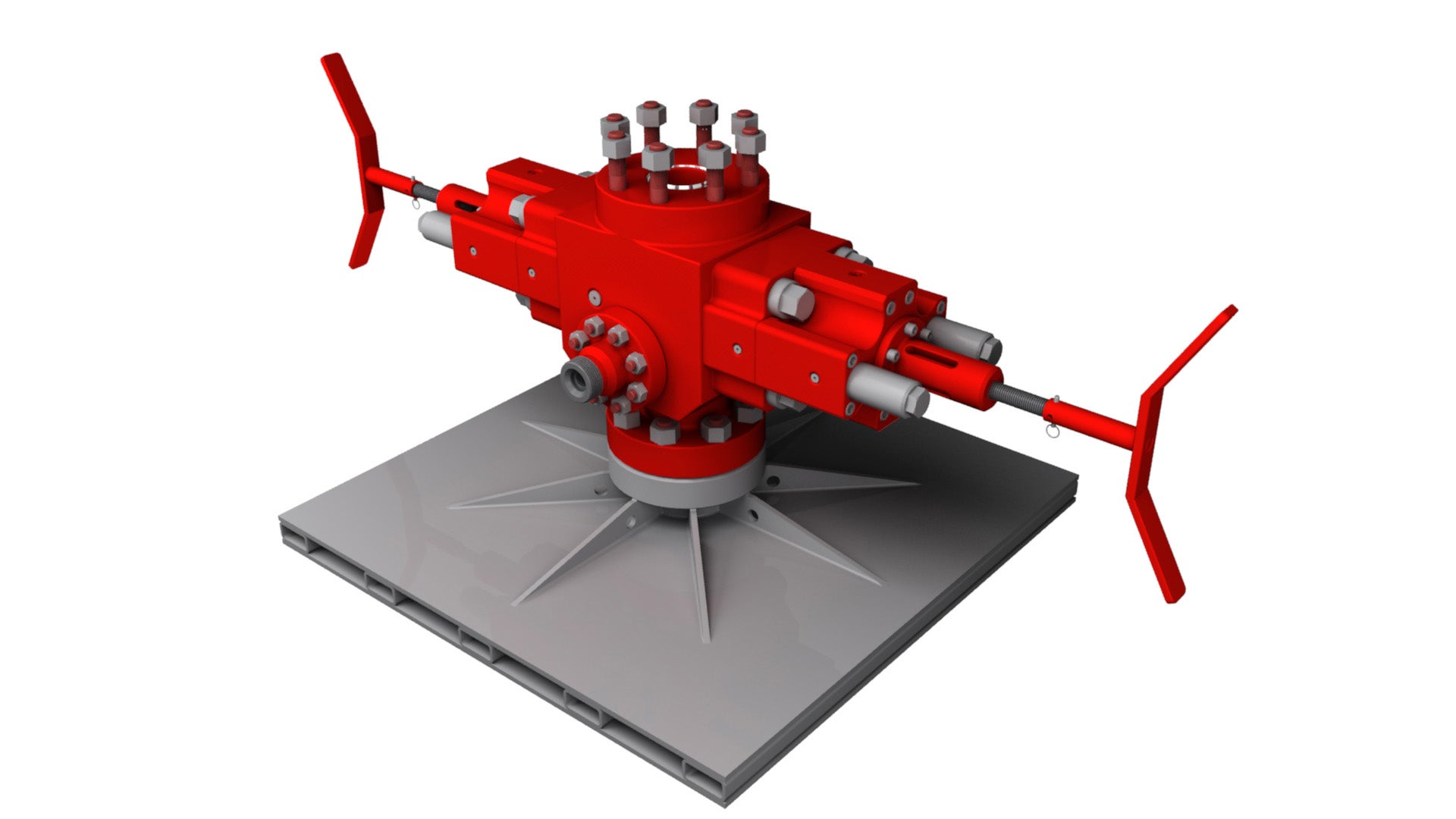

Render of Snubbing BOP
  • Description Description
  • Ruler Specifications
  • Resources Resources
Description

We supply pressure control equipment for both snubbing and workover operations. The products we supply include blowout preventers (BOPs), annular BOPs, work windows, risers, telescoping joints, rotating strippers, and snubbing rams.

Our workover/snubbing BOPs are designed to seal off tubing strings during well servicing operations, which require snubbing pipe into or out of a well under pressure. The BOPs feature high-pressure ratings in a compact design and allow for fast ram seal removal and replacement. The snubbing BOP is rated for H2S service and is available with internal diameters that range from 3.06 to 7.06 in.

Features/Benefits

  • Mono-block body design available in single, dual, triple, and quad
  • Shearing capability: ¾–2⅜ in. S-135 heavy wall pipe
  • Easy maintenance of rams and stem seals
  • External-ram indicators
  • Simple hydraulic-ram removal mechanism
  • Closing ratios available in 16:1 and 25:1

Options

  • lnconel inlay on seal surfaces
  • Fluropolymer coating of BOP internal body surfaces
  • Available with keyed or keyless rams
Specifications

Snubbin BOP Specifications

Model

Bore

Working Pressure

Tubing Range

Configuration

Weight

Height

Width

DD46

4.06 in.

15,000 psi

1.00 to 2.87 in.

Single

1,966 lbs

24.75 in.

77.50 in.

DD46

4.06 in.

15,000 psi

1.00 to 2.87 in.

Twin

3,489 lbs

37.75 in.

77.50 in.

DD46

4.06 in.

15,000 psi

1.00 to 2.87 in.

Quad

6,715 lbs

63.75 in.

77.50 in.





Resources
  • Texas Oil Tools Well Intervention Equipment Catalog

Product Service Bulletins

Contact us for our latest product service bulletins to stay up to date on equipment updates.
