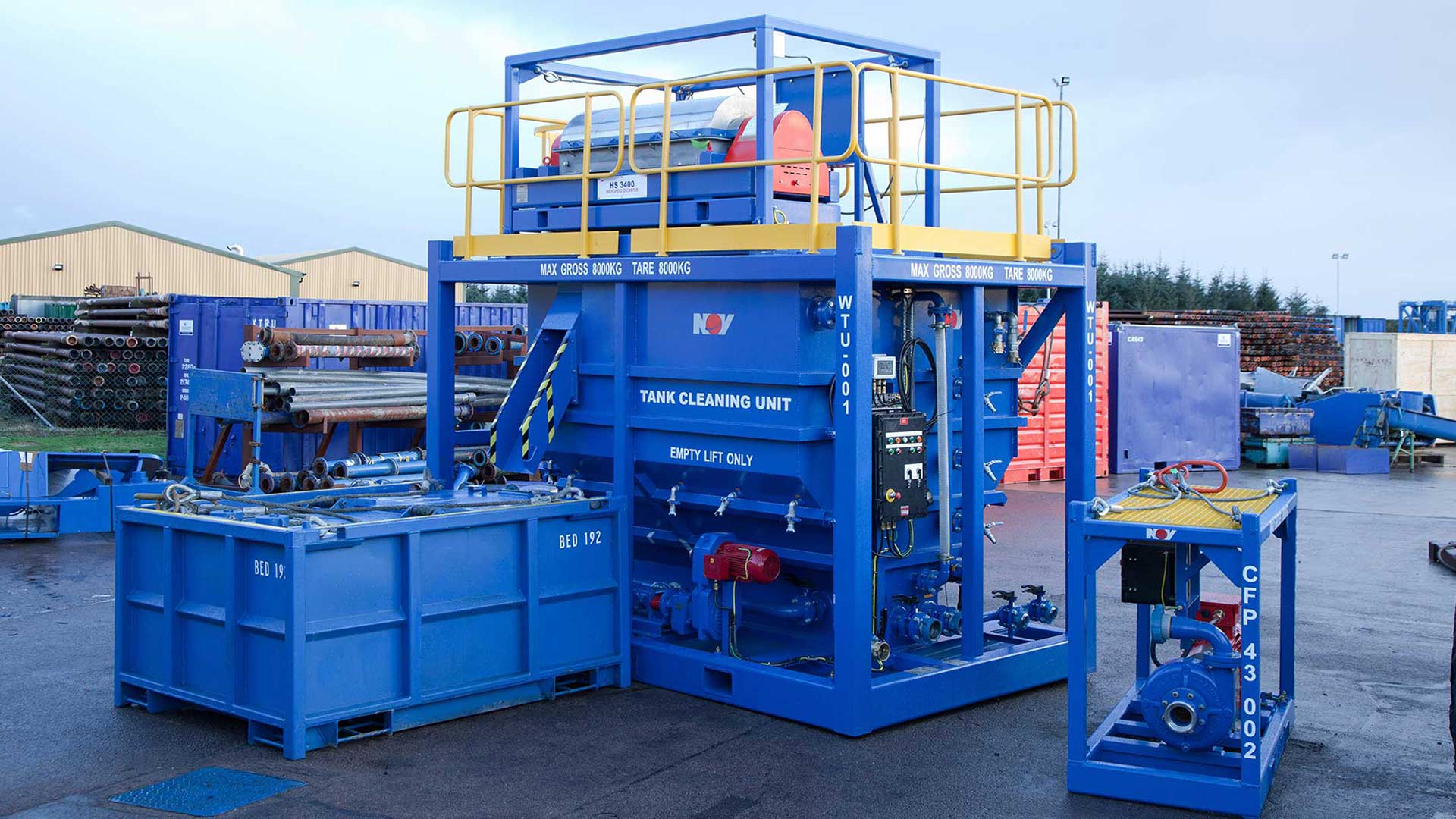

Tank Cleaning Unit

Tank Cleaning Unit

The BRANDT Tank Cleaning System by FluidControl is specifically designed to reduce personnel entry into the tanks and to minimize the amount of waste water generated.

  • Description Description
  • Ruler Specifications
  • Resources Resources
Description



The BRANDT Tank Cleaning System is comprised of two wash water holding tanks: one for the dirty water returning from the cleaning operations and one for the clean water used for jetting. The wash water is pretreated with surfactant before any cleaning commences. A Mono™ progressive cavity pump is used for supplying wash water to the jetting nozzles inside the tanks being cleaned, and a Mission™ centrifugal pump is used for creating a wash water circuit.

This circuit is used to convey the slurry back to the system. The returned dirty water is fed through a decanter centrifuge to remove the bulk of the solids. The clean water is discharged into the clean water holding tank and is available for reuse. Upon completion of the tank cleaning, the wash water is chemically treated to separate the oil, water, and solids so that the clean water can be discharged overboard while only the heavily contaminated sludge is returned to shore for further treatment.

Benefits

  • Faster cleaning times – Less downtime
  • Less personnel entry – Safer working environment
  • Reduced waste – Lower disposal costs and environmentally friendly
  • Can be used to treat slop water when tank cleaning is not required
Specifications

Tank Cleaning Unit Specifications and Dimensions

Dimensions (L × W × H) 157 × 96 × 114 in. (4000 × 2450 × 2890 mm)
Weight empty 17,637 lb (8000 kg)
Wash water volume 282.5 ft3 (8 m3)
Jetting pump MONO C17B
Jetting pump performance 989 ft3 (28 m3)/hr at 10 bar
Recirculation pump Centrifugal – 3 in outlet with fig 206 Anson hammer union
Recirculation pump performance 3,531 ft3 (100 m3)/ hr at 3 bar
Centrifuge feed pump MONO C15B
Centrifuge feed pump performance 353 ft3 (10 m3)/ hr at 5 bar
Filling pump Air-operated 2-in. diaphragm pump
Electric specification ATEX Zone 2
Frame design DNV 2.7 - 1
