Tolteq GUIDE MWD Surface System

Comprehensive features and optimized decoding from a dependable surface system.

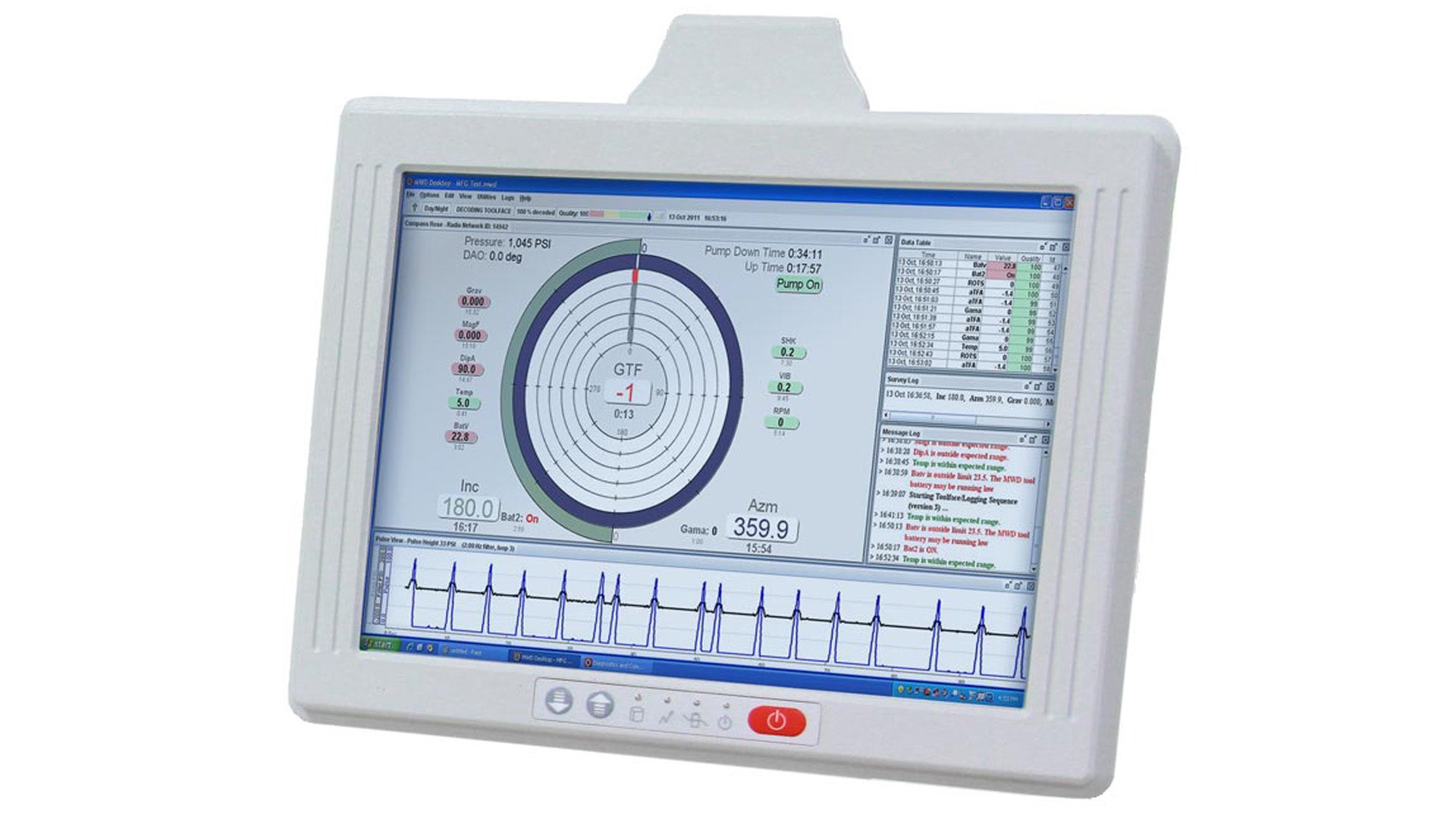

Render of Tolteq Guide MWD Surface System
Have a question? Contact us.
  • Description Description
  • Resources Resources
Description

The iSeries GUIDE measurement-while-drilling (MWD) surface system is a complete, field-proven wellsite solution. The GUIDE system is the most compact and portable surface system available, enabling setup times of less than 20 minutes. Powerful and intuitive software drives optimized decoding and well archiving with a customizable main screen and automated WITS capability that ensures ease of use. Four configurable while-drilling sequences, in addition to the survey sequence, let the user determine exactly what needs to be displayed; in addition, automatic switching between sequences eliminates the concern of receiving the wrong information.

The complete GUIDE MWD surface system includes the following:

  • Rig-floor decoder
  • Surface system interface
  • MWD decoder software
  • MWD desktop software for PC
  • Pressure transducer (10,000 psi, 4 to 20 mA, hammer union)
  • Two antennas with magnetic mounts for wireless connection between rig-floor display and PC
  • Pressure transducer cable
  • Tool interface cable
  • Weather-proof Pelican™ case
  • Laptop computer (optional)

For more information, email [email protected]
