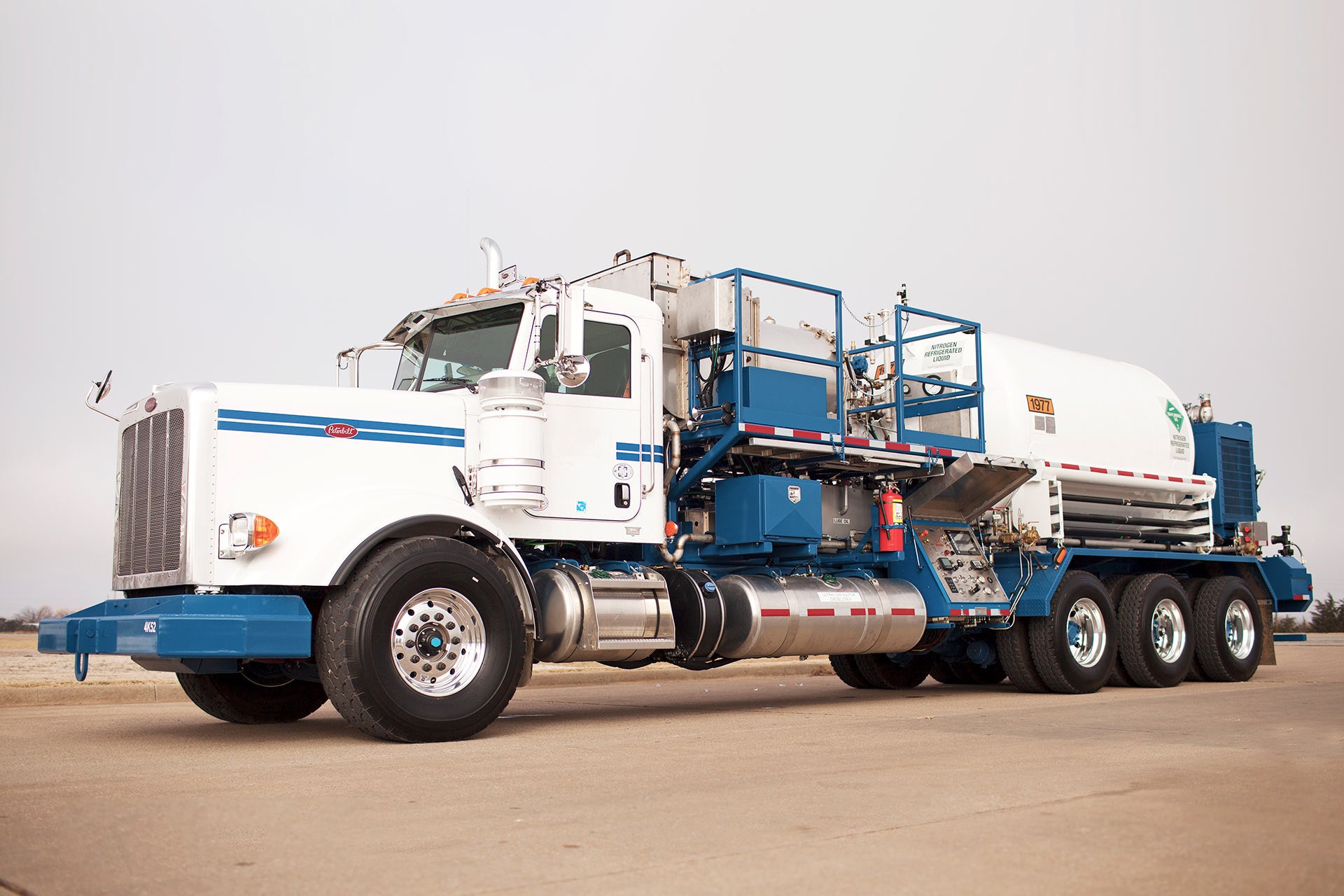

Baker Hughes branded Truck-mounted Nitrogen Unit

Truck-Mounted Nitrogen Unit

Our Hydra Rig truck-mounted nitrogen units can be customized to fit your operational needs—in both non-fired and direct-fired configurations.

  • Description Description
  • Ruler Specifications
Description

Designed with a condensed footprint for hard-to-access locations.

They come standard with a main engine, transmission, reduction/drop box, triplex nitrogen pump, nitrogen boost pump, direct-fired vaporizer, hydraulics, liquid nitrogen storage tank, and necessary piping and controls. These models can be built on any major brand of truck chassis.

Options

  • Control cabin versus ground controls
  • Cold ends/rates
  • TCRN
Specifications

Direct-Fired Pump Specifications

Model

Cold end diameter

Maximum flow

Maximum pressure

CH400DF

2.00 in. (50.80 mm)

400,000 scfh (10 512 m³/hr)

15,000 psi (103 MPa)

CH640DF

2.52 in. (64.00 mm)

640,000 scfh (16 819 m³/hr)

15,000 psi (103 MPa)

CH840DF

2.875 in. (73.03 mm)

840,000 scfh (22 075 m³/hr)

11,000 psi (77 MPa)

Calfrac branded Truck-mounted Nitrogen Uni
PRAXAIR branded Truck-mounted Nitrogen Unit
Legend branded Truck-mounted Nitrogen Uni
