Register here Sign inTube × Tube Internal Connector
Our tube × tube internal connector operates in specialty downhole applications.
-
Description
-
Specifications
Description
This unique tool is designed for specialty applications in which large heavy-wall tubing is being manipulated at the surface. Common uses for this tool include stabbing into injectors, spooling, loading, or unloading pipe. Simple insertion and tightening of the slips after both tubes are brought together will fully assemble this handy tool.

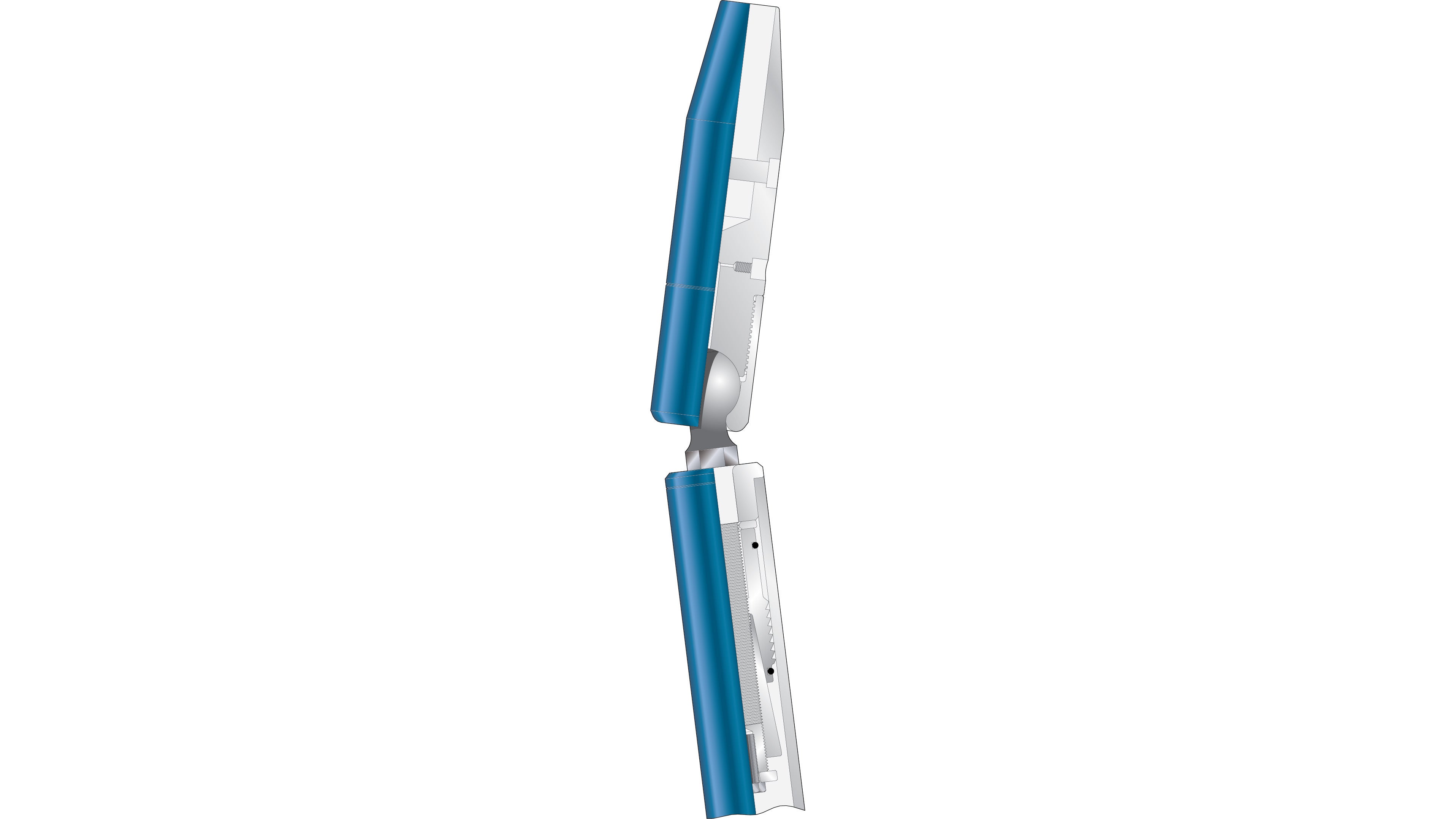

The center ball joint gives total flexibility against stiff pipe.
Specifications
Tube × Tube Internal Connector Technical Specifications
| Part number | Tool description | Coiled tubing size | Service kits |
| 8095-500 | 2-in. tube × 2-in. tube – Double-joint type | 2 in. | 8095-500-RDK |
| 8095-000 | 2-in. tube × 2-in. tube connector – Ball-joint type | 2 × 2 in. | 8095-000-RDK |
| 8092-000 | 2⅜-in. tube × 2⅜-in. tube connector – Ball-joint type | 2⅜ × 2⅜ in. | 8092-000-RDK |
| 8093-000 | 2⅝-in. tube × 2⅝-in. tube connector – Ball-joint type | 2⅝ × 2⅝ in. | 8093-000-RDK |
| 8094-000 | 2⅞-in. tube × 2⅞-in. tube connector – Ball-joint type | 2⅞ × 2⅞ in. | 8094-000-RDK |
| 8094-500 | 2⅞-in. tube × 2⅞-in. tube – Double-joint type | 2⅞ in. | 8094-500-RDK |
| 8087-500 | 3¼-in. tube × 3¼-in. tube – Double-joint type | 3¼ in. | 8087-500-RDK |
| 8097-000 | 3¼-in. tube × 3¼-in. tube connector – Ball-joint type | 3¼ × 3¼ in. | 8097-000-RDK |
| 8096-000 | 3½-in. tube × 3½-in. tube connector – Ball-joint type | 3½ × 3½ in. | 8096-000-RDK |
