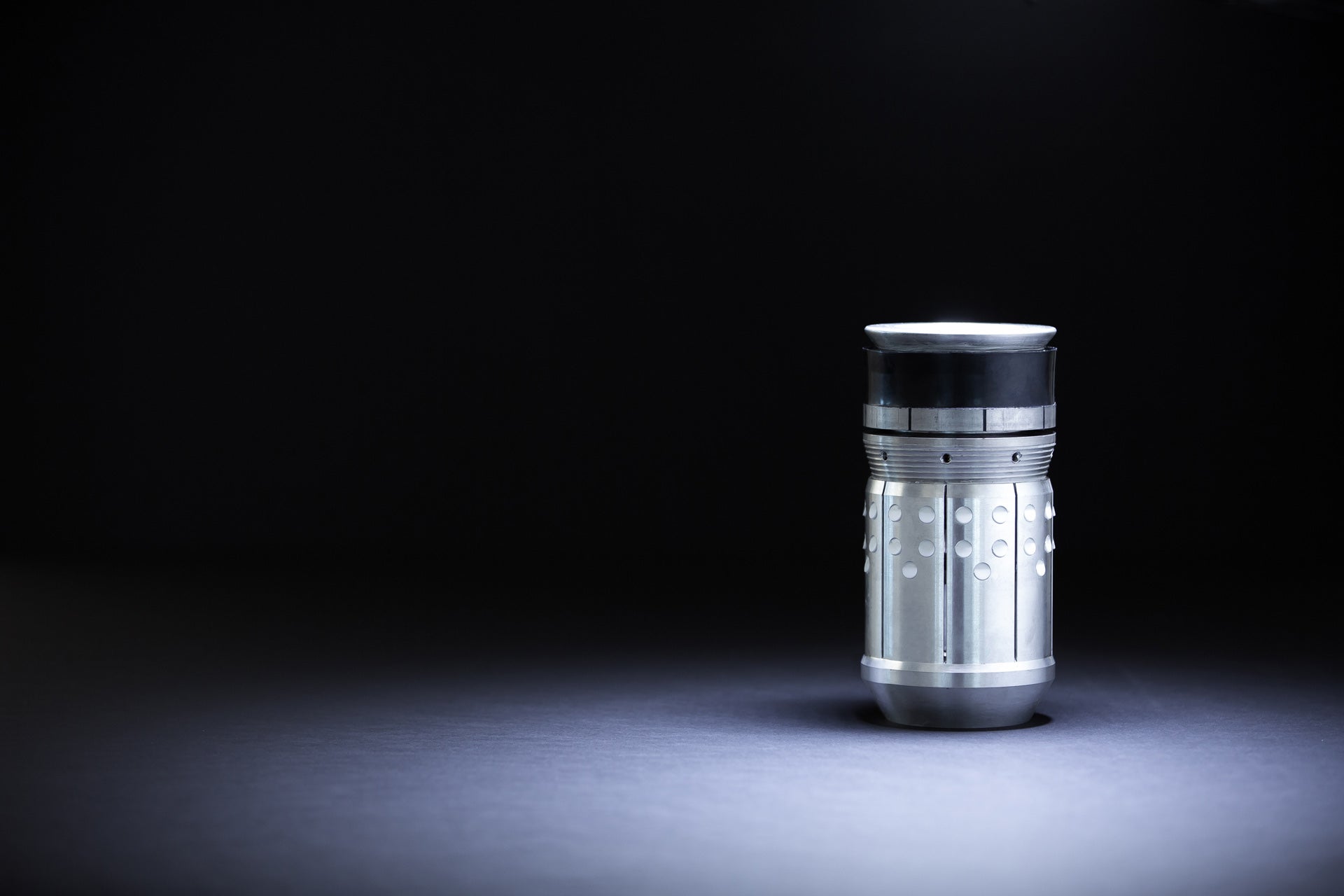

VapR Dissolvable Frac Plug
Save time and increase efficiencies with our fully dissolvable frac plug.
-
Description
-
Specifications
-
Resources
Description
Our VapR™ dissolvable frac plug is a fully dissolvable frac plug that provides a dependable method for temporary zonal isolation during fracturing operations in both vertical and horizontal completions. The compact design eliminates milling and post-frac cleanout, leaving no debris to remove from the well. The minimalist design has 60 to 70% fewer parts than competitive products, leaving less material in the well to be dissolved.
Features
- Revolutionary design with minimal parts
- Unique bonded seal design
- 60 to 70% less material than competitive offerings
- Allows reacting fluid to contact both external and internal surfaces
- Larger ID than competitive offerings
Benefits
- Fewer parts to enable increased reliability and performance
- Allows plug to be run faster than conventional element designs
- Less material for faster dissolution
- Consistent dissolution as the reacting fluid touches all surfaces
- Allows higher production before full dissolution
Applications
- Single or multizone applications
- Vertical, deviated, or horizontal wellbores
- Multistage frac and plug-n-perf operations
Specifications
VapR Dissolvable Frac Plug Specifications
| Casing | 4.500 in. (114.30 mm) | 4.500 in. (114.30 mm) | 4.500 in. (114.30 mm) | 5.500 in. (139.70 mm) | 5.500 in. (139.70 mm) |
| Casing weight range | 11.6 lbf (17.26 kg/m) | 13.5 – 15.1 lbf (20.09 – 22.47 kg/m) |
13.5 – 15.1 lbf (20.09 – 22.47 kg/m) |
20.0 – 23.0 lbf (29.76 – 34.22 kg/m) |
20.0 – 23.0 lbf (29.76 – 34.22 kg/m) |
| Maximum plug OD | 3.600 in. (91.44 mm) | 3.600 in. (91.44 mm) | 3.600 in. (91.44 mm) | 4.390 in. (111.51 mm) | 4.390 in. (111.51 mm) |
| Minimum plug ID | 1.200 in. (30.48 mm) | 1.200 in. (30.48 mm) | 1.650 in. (41.91 mm) | 1.975 in. (50.17 mm) | 1.380 in. (35.05 mm) |
| Plug length | 7.240 in. (183.90 mm) | 7.070 in. (179.58 mm) | 8.310 in. (211.07 mm) | 8.975 in. (227.97 mm) | 8.950 in. (227.33 mm) |
| Ball type | Ball in place | Ball in place | Drop ball | Drop ball | Ball in place |
| Material | Dissolvable | Dissolvable | Dissolvable | Dissolvable | Dissolvable |
| Temperature rating | 200 °F (93.33 °C) | 300 °F (148.89 °C) | 300 °F (148.89 °C) | 200 °F (93.33 °C) | 200 °F (93.33 °C) |
| Pressure rating | 10,000 psi (68,947 kPa) | 10,000 psi (68,947 kPa) | 10,000 psi (68,947 kPa) | 10,000 psi (68,947 kPa) | 10,000 psi (68,947 kPa) |
