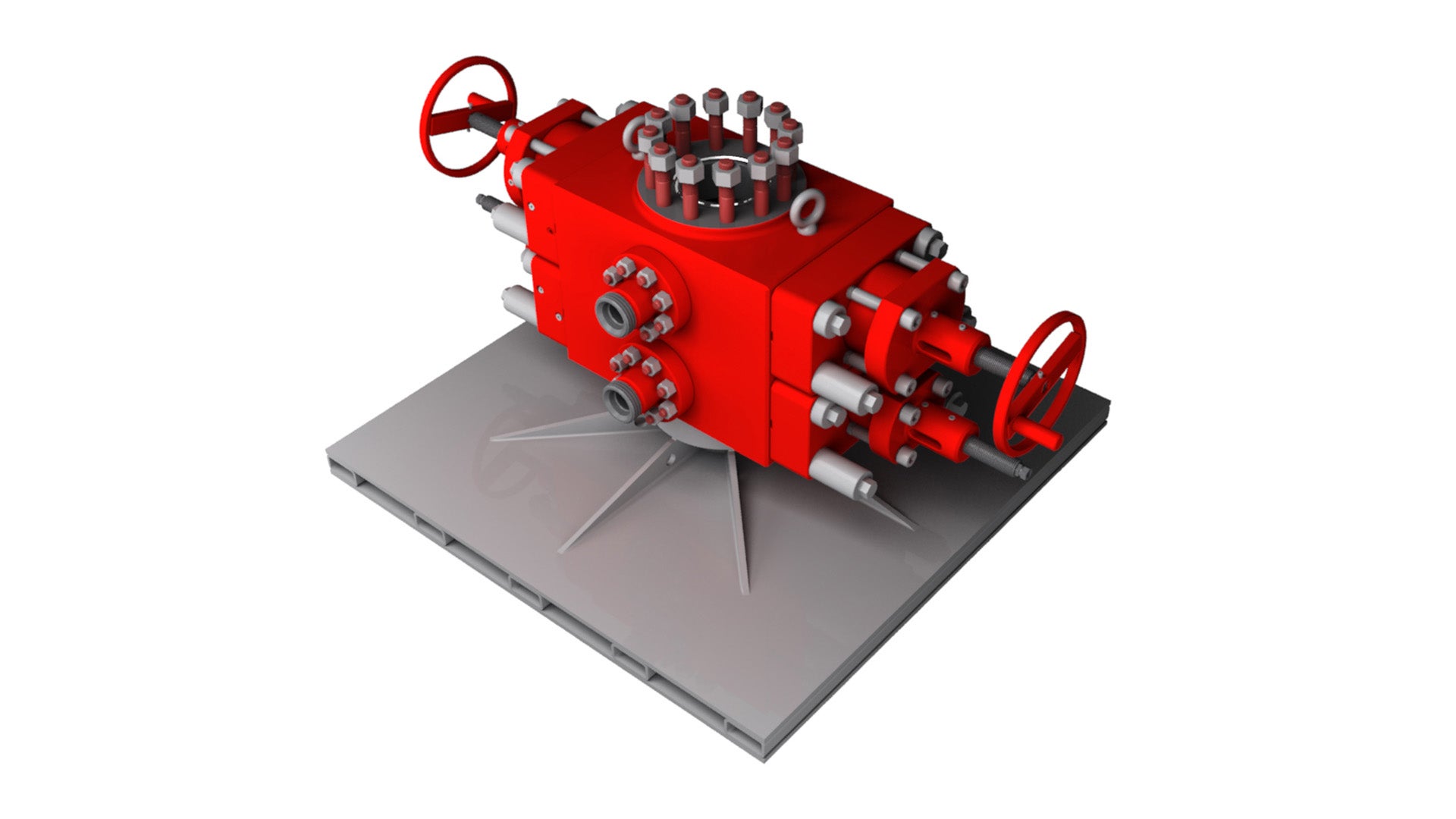

Our latest workover blowout preventer (BOP) is the newly designed EGA Series.
-
Description
-
Specifications
-
Resources
Description
This compact design has a solid forged body with open or studded flanges on the top and bottom.
Features/Benefits
- External mechanical locks for ease of operation and safety
- Studded side outlets, full 21/16-in. bore below each ram compartment
- Well-pressure isolated seals
- NACE MR-0175 compliant components
- Multi-cut shear blades and replaceable slip inserts
- Interchangeable rams
- Forged body
- Heavy-duty lifting bracket
- Shortest stack height available
- Quick ram change
- Light and short (easy to transport and install)
- Ram guides to center coiled tubing in the rams
- Easily customizable, with interchangeable actuators for any BOP configuration
Specifications
Workover BOP Specifications
|
Model |
Bore |
Working Pressure |
Tubing Range |
Configuration |
Weight |
Height |
Width |
|
EGA72 |
7.06 in. |
5,000 psi |
1.00 to 3.50 in. |
Single |
1,942 lbs |
12.99 in. |
78.45 in. |
|
EGA72 |
7.06 in. |
5,000 psi |
1.00 to 3.50 in. |
Dual |
3,627 lbs |
22.50 in. |
78.45 in. |
Product Service Bulletins
Contact us for our latest product service bulletins to stay up to date on equipment updates.
