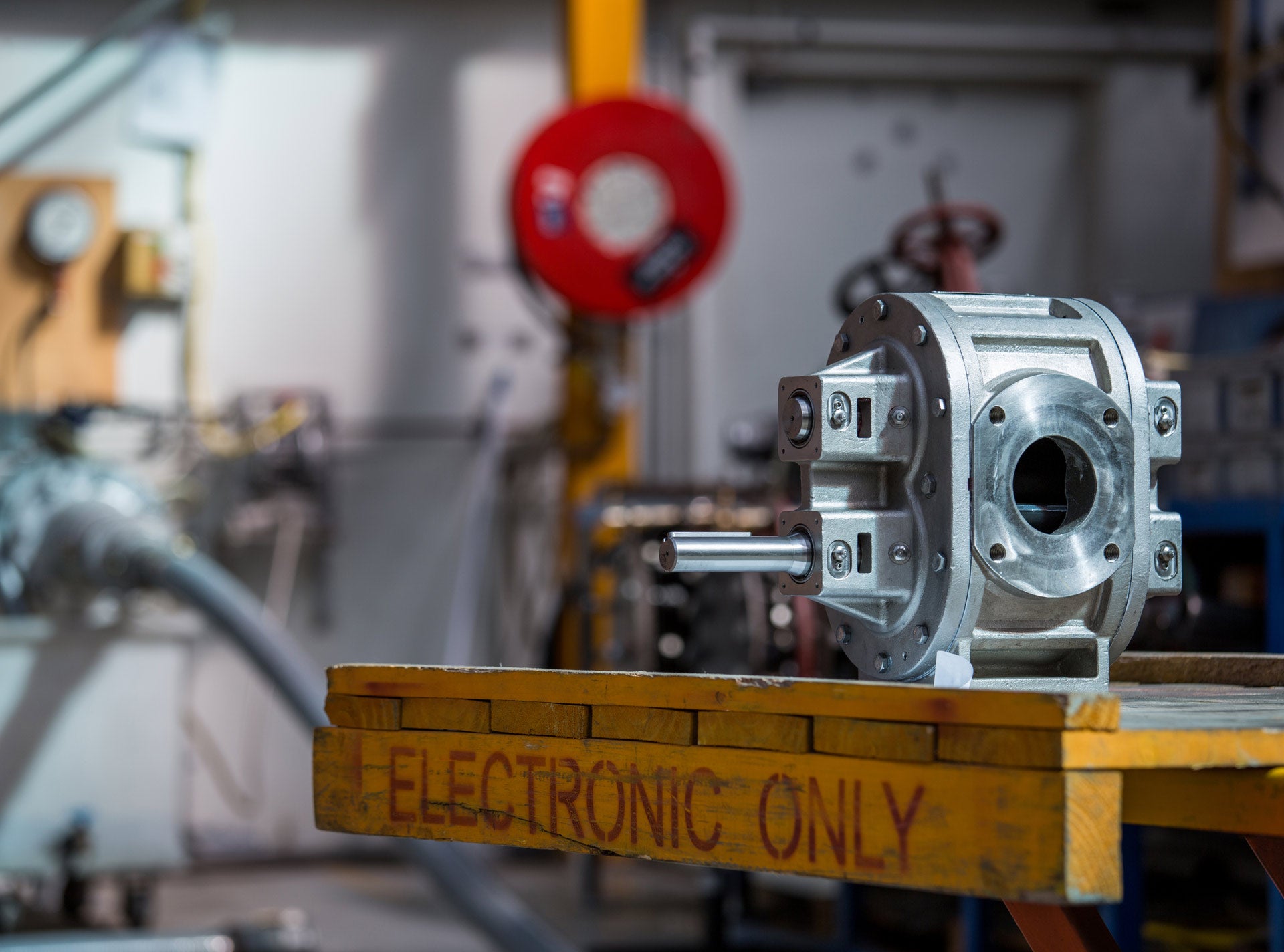

XG Gear Pump

Gear pumps are used in the explosives industry as a more cost-effective alternative to move explosive emulsion or matrix where no pressure is involved.

  • Description Description
  • Ruler Specifications
  • Resources Resources
Description

The X Range was born through a collaboration with major players in this industry, and we worked closely with our customers to expand our Explosives Range to include the XG Gear pump.

Features/Benefits

  • Stainless steel construction
  • ISO9001:2008 compliant
  • Off-the-shelf availability
  • Fewer moving parts than conventional pumps
  • Top drive or bottom drive for convenience
  • Reversible for clearing lines
Specifications

XG Gear Pump specifications

 Pressure

Up to 116 psi (8 bar)

Temperature

32 to 122 °F (0 to 50 °C)

Speed

300 RPM

Body material

316 Stainless Steel

Lobes material

Fiber-reinforced nitrile

Size

3 in. shaft







Resources
  • XG Gear Pump Flyer
