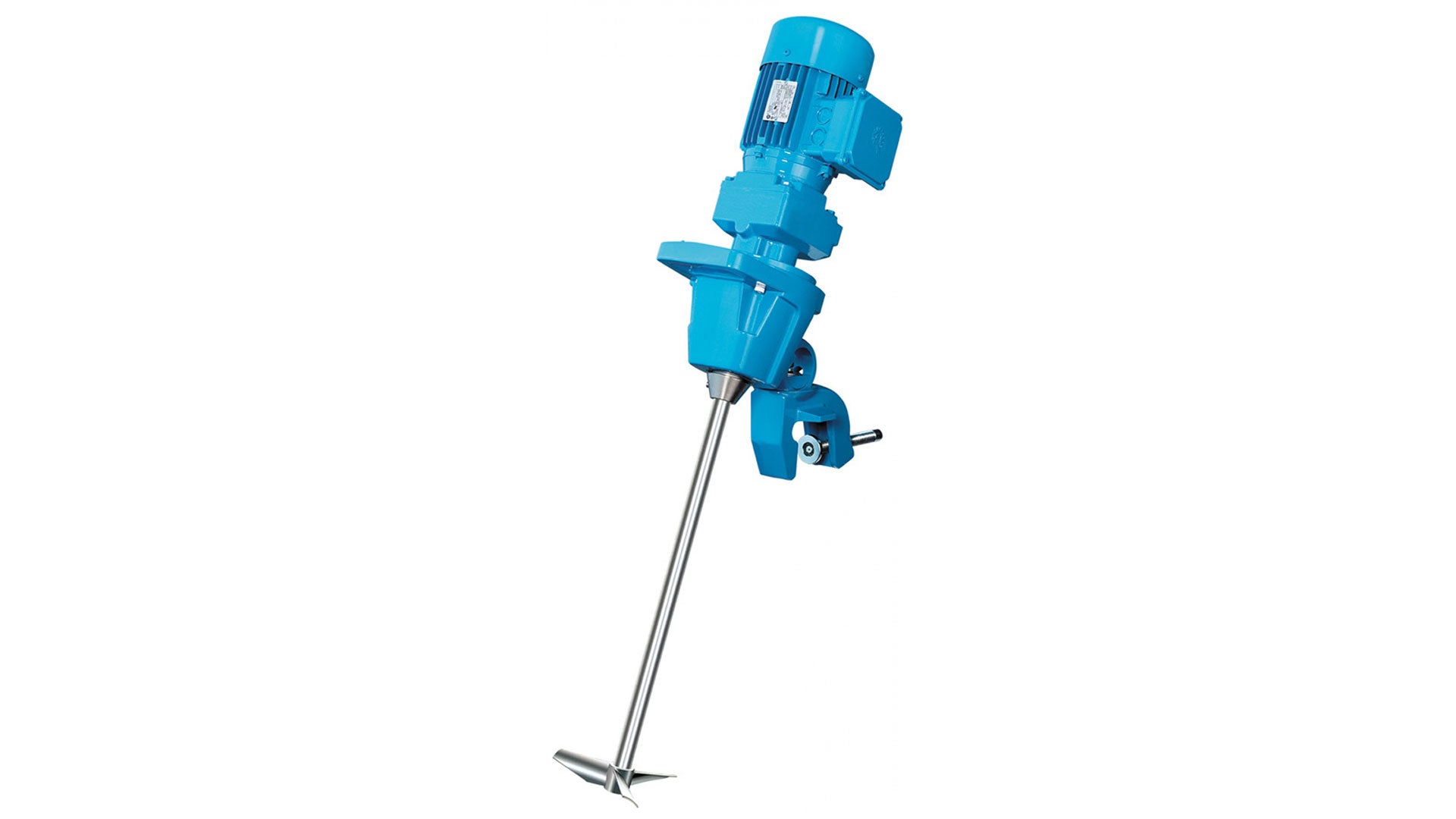

Register here Sign inXPress Portable Mixers
Chemineer’s XPress Portable Mixers offers quick, total support for mixing needs in the chemical and petrochemical, pharmaceutical, biotechnology, polymers and food and grain processing industries.
-
Description
-
Specifications
-
Resources
- 72-hour delivery
- 30-day No Risk Trial
- Total support for your mixing need
- 50+ years experience in mixer technology
- Industry standard IEC, off-theshelf motors from 0.18 to 1.5kw Features and Benefits Motors: Direct drive
Models
10XPB, 10XPC & 30XPC; Industry standard, off-the-shelf, IEC electric or air motors.
Gearmotors
Gear-reduced Model 40XPC; Low maintenance integral motor/gear drive offers 290 rpm nominal output speed.
Cast Handle
Integral cast aluminum handle for easy manoeuvrability and positioning.
Mount
High-strength cast aluminium C-clamp or cup plate mount offers 3-dimensional positioning with positive lock adjustability. Bung-mount mixer designed to fit all 2" NPT drum openings also available.
Shaft
Rugged, heavy-duty shafting manufactured from 316L SS. 16mm or 25mm diameter shafting straightened to 0.16mm per metre to reduce vibration and extend unit life. Shaft lengths to 2500mm.
Impeller
A high-efficiency impeller (JF-3) or propeller (JP-3) is standard depending on model. The bung-mount mixer, 10XPB, is available with a 100mm or 127mm collapsible propeller.
Product Specifications
| Model 10XPB | Model 10XPC | Model 30XPC | Model 40XPC | |
|---|---|---|---|---|
| Mounting | Bung Mount, 2" NPT | Clamp or Cup Plate | Clamp or Cup Plate | Clamp or Cup Plate |
| Speed (rpm) | 1750 | 1750 | 1750 | 350 |
| Motor Size | Up to 1 hp | Up to 1 hp | Up to 2 hp | Up to 1 hp |
| Shaft Diameter | 5/8" | 5/8" | 1" | 1" |
| Shaft Extension | Up to 66" | Up to 66" | Up to 98" | Up to 98" |
| Impeller / Propeller Diameter | Collapsible Propeller | Marine Prop (JP-3) | Marine Prop (JP-3) | High Efficiency Impeller (SC-3) Marine Prop (JP-3) |
-
