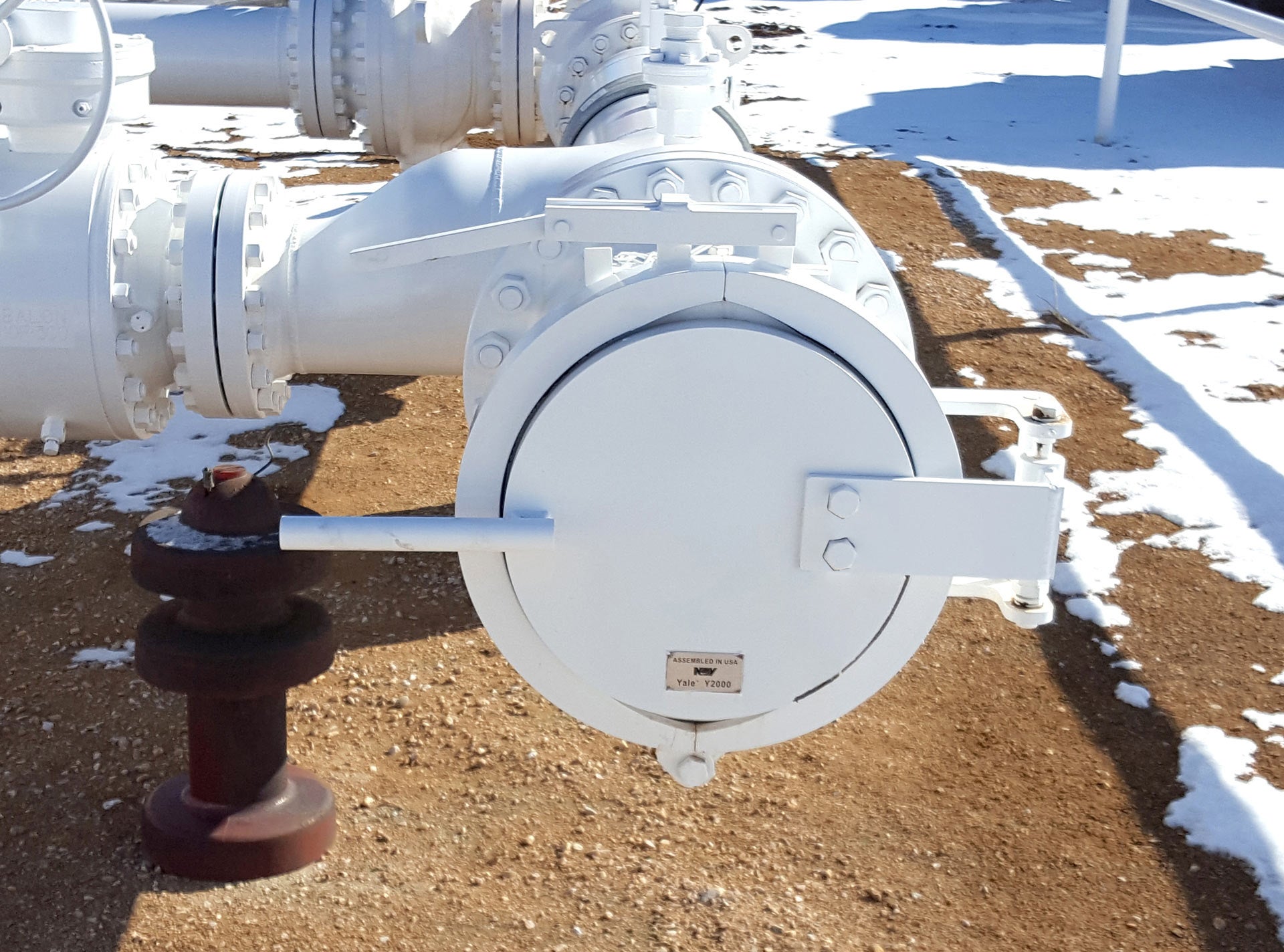

Yale Y2000 Clamp Closure

Our Yale Y-2000 is designed for line applications for which a simple clamp operation offers an alternative to traditional threaded closures.

  • Description Description
  • Resources Resources
Description

Our Yale™ Y-2000 is a clamp-style closure designed specifically for 8- through 12-in. pipeline applications. The operation is simple, safe, does not require special tools, and does not place the operator in harm's way during any step of the opening process. Our standard design codes are ASME B31.4 and B31.8.

Features/Benefits

  • True quick opening—typically less than 90 seconds
  • Simple operation—no special tools required
  • Pressure aging vessel (PAV) pressure warning device integral to closure operation
  • Compliant with pipeline design codes ASME B31.4 and ASME B31.8
  • Fabricated in the USA
  • USA-produced forgings
  • O-ring seal—standard A5-568 O-rings in commercially available sizes and materials
  • Pressure class—vacuum through ANSI 600
  • Inventory stocked to match both STD and XH pipe-wall thickness
Resources
  • Yale Y2000 Closure Data Sheet
  • Midstream Catalog (English)
  • Midstream Catalog (Russian)
