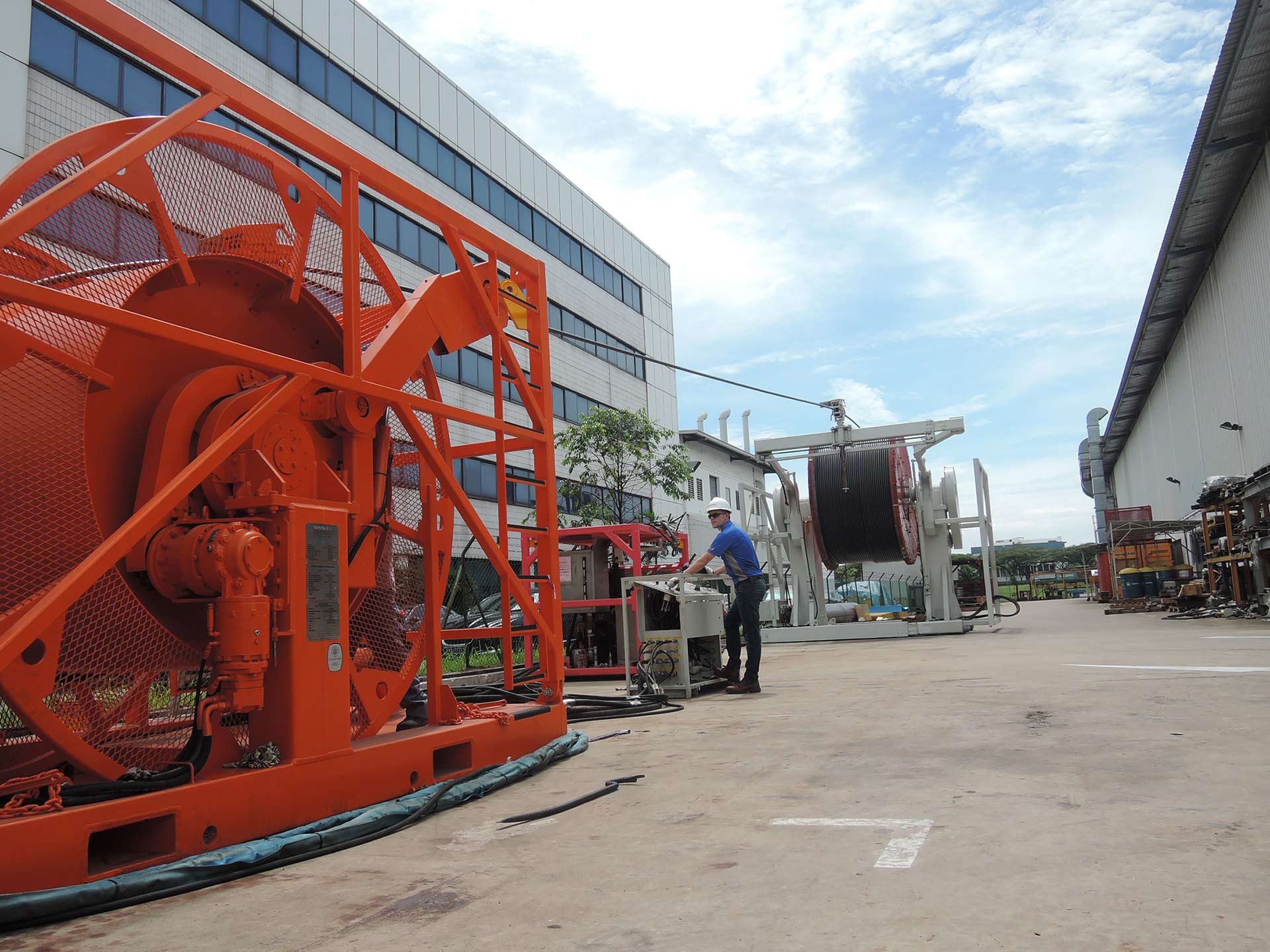

Yard Spooler
Allows for faster transfer of tubing between spools and power reels with adjustable retention force at high torque
-
Description
-
Specifications
The yard spooler comes in both nontelescopic and telescopic designs. The telescopic design allows loading and unloading of various sizes of mother spools up to a 105-in. wide, 210-in. flange diameter and tubing up to 2⅞-in. OD. This design also accepts the standard coiled tubing shipping (wooden) or metal spools. Our Hydra Rig™ spooler models are also capable of coiling tubes back to the mother spools directly from injector after operations are completed.
Yard Spooler Specifications
| Standard model | SPN28D | SPN35B | SPN50B | SPN70B | SPN90A | SPNA2A |
| Design | Telescopic yard spooler | Telescopic yard spooler | Telescopic yard spooler | Telescopic yard spooler | Telescopic yard spooler | Telescopic yard spooler |
| Rated shaft load | 28 MT | 35 MT | 50 MT | 70 MT | 90 MT | 120 MT |
| Transportation dimension (L x W x H) | 165.4" x 96"x 120" (4,200 mm x 2,438 mm x 3,050 mm) | 177" x 96"x 130" (4,500 mm x 2,438 mm x 3,300 mm) | 188" x 120" x 140" (4,775 mm x 3,048 mm x 3,556 mm) | 189" x 120" x 146" (4,800 mm x 3,048 mm x 3,708 mm) | 189"x120"x146" (4,800 mm x 3,048 mm x 3,708 mm) | 195" x 120" x 165" (4,953 mm x 3,048 mm x 4,190 mm) |
| Approx. weight | 8,000 kg | 9,000 kg | 12,000 kg | 14,000 kg | 15,000 kg | 20,000 kg |
| Max. drum diameter | 160" (4,064 mm) | 180" (4,572 mm) | 204" (5,182 mm) | 204" (5,182 mm) |
220" (5,588 mm) | 240" (6,096 mm) |
| Max. drum outside width | 80" (2,032 mm) | 96" (2,438.4 mm) | 105" (2,667 mm) | 105" (2,667 mm) | 105" (2,667 mm) | 107" (2,717 mm) |
| Min. drum outside width | 70" (1,778 mm) | 68" (1,727 mm) | 70" (1,778 mm) | 70" (1,778 mm) | 70" (1,778 mm) | 70" (1,778 mm) |
| Max. drum weight (drum + CT + fluids) | 28,000 kg | 35,000 kg | 50,000 kg | 70,000 kg | 90,000 kg | 120,000 kg |
| Drum speed @ 30 gpm hydraulic supply | 13 rpm (one motor), 6.5 rpm (two motors) |
13 rpm (one motor), 6.5 rpm (two motors) |
13 rpm (one motor), 6.5 rpm (two motors) |
8.5 rpm (one motor), 4.2 rpm (two motors) |
7.5 rpm (one motor), 3.8 rpm (two motors) |
7.5 rpm (one motor), 3.8 rpm (two motors) |
| Max. hydraulic working pressure | 2,500 psi |
2,500 psi |
2,500 psi |
2,500 psi |
2,500 psi |
2,500 psi |
