CJ70 Jack-up

Harsh Environment, High Efficiency Design Solution

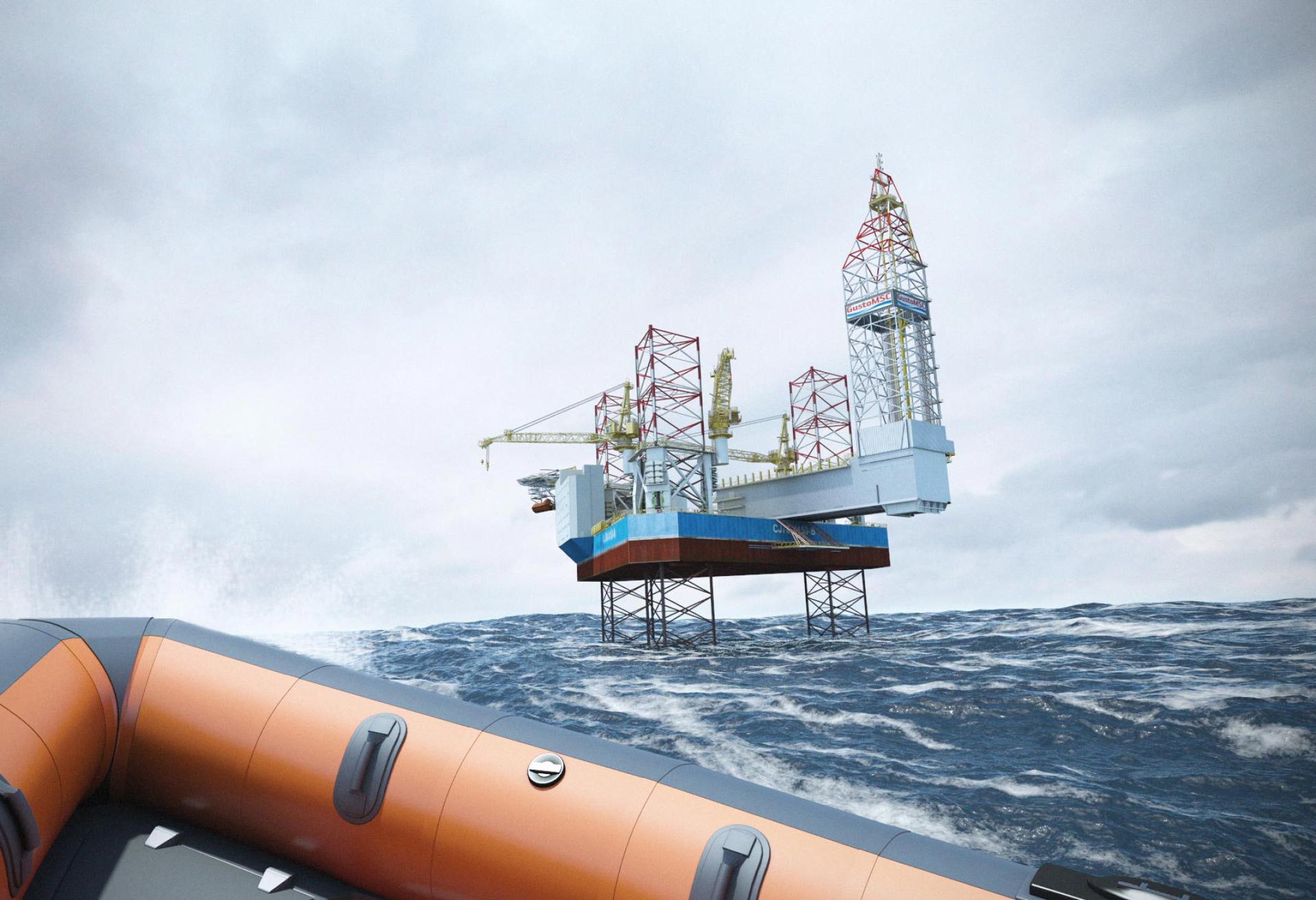

The CJ70 is a three-legged cantilever type jack-up drilling rig that is part of the well-established GustoMSC CJ series. The series consists of seven distinct types for moderate and harsh environment designs. The CJ70 is the largest unit in the series currently in operation and is driving the boundaries of jack-up territory further out. The CJ70 is specifically designed for all-year use in water depths up to 150 meters on the Norwegian Continental Shelf in the North Sea, taking into account all Norwegian regulatory requirements regarding safety and working environment. It provides competition in an area previously dominated by floaters but does that with much better uptime during the harsh winter months and with significantly less motion of the drill string due to the fixed nature of a jack-up. The innovative X-Y skidding system provides a large drilling envelope of 110x66ft.

The CJ series further consists of the CJ43, CJ46, CJ50, CJ54, CJ62, and CJ80.


Game changing solution:

  • Unrivalled overall structural capability
  • Unrivalled environmental loading capacity
  • Unrivalled variable load in all conditions
  • High drilling efficiency
  • Large drilling envelop due to X-Y cantilever skidding system
  • Sturdy leg bracing system
  • Unrivalled free deck area

The CJ series can be fully customized to owner’s specific requirements


Main Characteristics

Water Depth

150 m

 Deck size 88.8 x 102.5 m
Variable Load Oper. 12,000 mt
Cant. Comb. Load 1,750 ml
Cantilever Reach 33.5 x 20 m
Derrick 2,500 kips
Mud Capacity 9,800 bbls

CJ70 Jurong shipyard jackup rig
CJ70 Jurong Shipyard Jack-up Rig
CJ70 Maersk Inspirer jackup rig
CJ70 Maersk Inspirer Jack-up Rig
CJ70 Noble Lloyd Noble jackup rig
CJ70 Noble Lloyd Noble Jack-up Rig
CJ70 Noble Lloyd Noble jackup rig aerial
CJ70 Noble Lloyd Noble Jack-up Rig Aerial
CJ70 West Elara Gullfaks jackup rig
CJ70 West Elara Gullfaks Jack-up Rig

Our designs at work

Ideas may start on paper, but our designs are brought to life each day as they serve the marine and offshore industries. View our reference list of field-proven designs and vessels.
