Choke Manifold: 5000S

Offers simple operation and maintenance suitable for most land and shelf drilling operations.

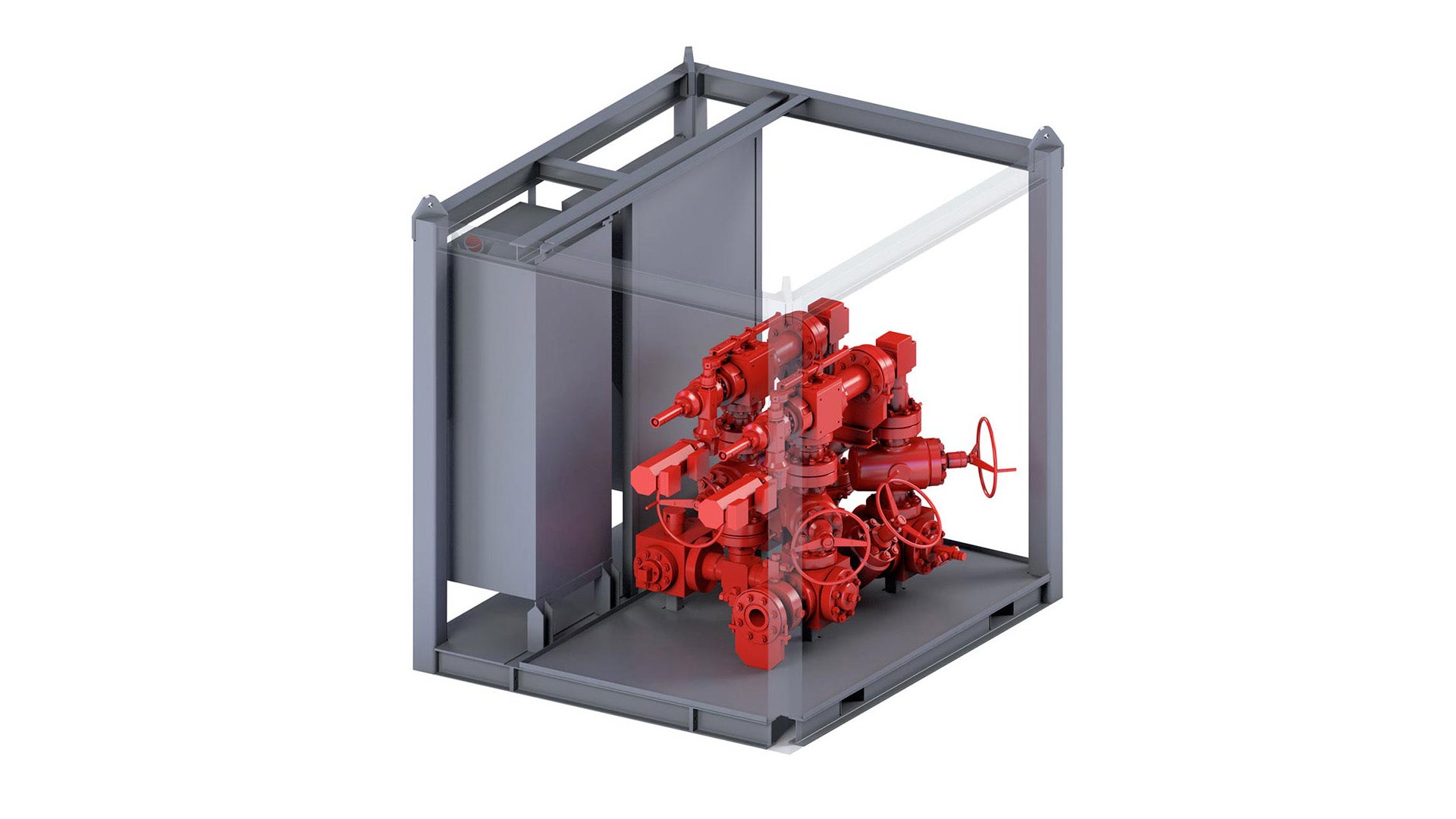

Render of MPowerD Choke Manifold 5000S
Description

The 5000S Managed Pressure Drilling Choke and Control System is designed for use in a wider range of managed pressure drilling (MPD) applications and is suitable for land, shelf, and offshore drilling operations. The NControl control system allows automatic control of the choke with a complete list of automated features. Our 5000S system can also be connected to the powerful NOV Comprehensive Hydraulics Model that provides a real-time pressure response, given any changes in drilling parameters in order to keep bottomhole pressure constant in a defined anchor point.

The NControl system supports Dual Choke Mode, enabling manual control of a secondary choke while the primary choke is in automatic mode. The system can also be configured to automatically swap chokes if a fault is detected or it is unable to reach the target setpoint by using the primary choke. If needed, chokes can be changed from primary control to secondary control while in operation to save time maintaining the target wellbore pressure.

HXE-G3 Choke

  • Continuous duty-cycle Siemens electric servo motor
    • Yields precise pressure control and quick response times
    • Enables choke to function reliably in cold conditions without the cost of running and maintaining hydraulic lines
  • Remote NControl system enables automatic or manual control of the choke
    • Automatic mode – Choke will rapidly adjust trim positioning to maintain the setpoint pressure input at the control system
    • Manual mode – Choke can be operated by bypassing the electric motor for inspection and service
  • Shaffer™ 2,300 SFC Manual Gate Valves
    • Through-conduit gate valves are robust and easy to maintain
    • Forged steel body and bonnet, bidirectional sealing, low operating torque, and manually operated (non-rising stem)

MPD 30 PRV

  • Continuous monitoring of wellbore pressure prevents overpressurization scenarios
    • Hard trip – set at the highest expected pressure
    • Soft trip – set dynamically by the MPD operator
  • Fail-in-place design prevents unintentional pressure fluctuations
  • Bleeds off only excess pressure and will close under pressure to maintain setpoint
  • Network capable system is interfaced with the NControl system for remote setpoint control

Integrated bypass line

  • Enables cement and casing shoe to be drilled out without affecting the chokes while in MPD mode
  • Directs pressure and fluids safely away from personnel servicing the choke while online
Specifications

Choke Manifold: 5000S Specifications

Working pressure 5,000 psi
Flange inlet and outlet API 41/16 in.
Service Sour NACE MR0175
API Standards API 6A and API 16C monogrammed
Ring groove inlay CRA 625
Temp. class ‘P+U’ (-20 to 250 °F)
Choke model HXE-G3
Choke actuator Electric servo
Choke size 3 in.
Relief valve MPD 30 automatic PRV
Isolation valves Shaffer 2,300 SFC
Performance standard PSL-3
Dimensions (L × W × H) 9.5 × 8 × 9.5 ft
Weight 18,700 lbm
Lifting certification DNV 2.7-1
Area classification Class 1, Div 1, ATEX Zone 1
Manufacturing certifications ISO 9001-2008 and API Q1 9th edition
Resources
  • MPowerD MPD Choke Manifold: 5000S Spec Sheet

  • Industry's first truly integrated MPD control system advances offshore drilling efficiency - 2021 World Oil editorial

  • Giving control back to the driller; Fully integrated MPD system - 2022 World Oil editorial
