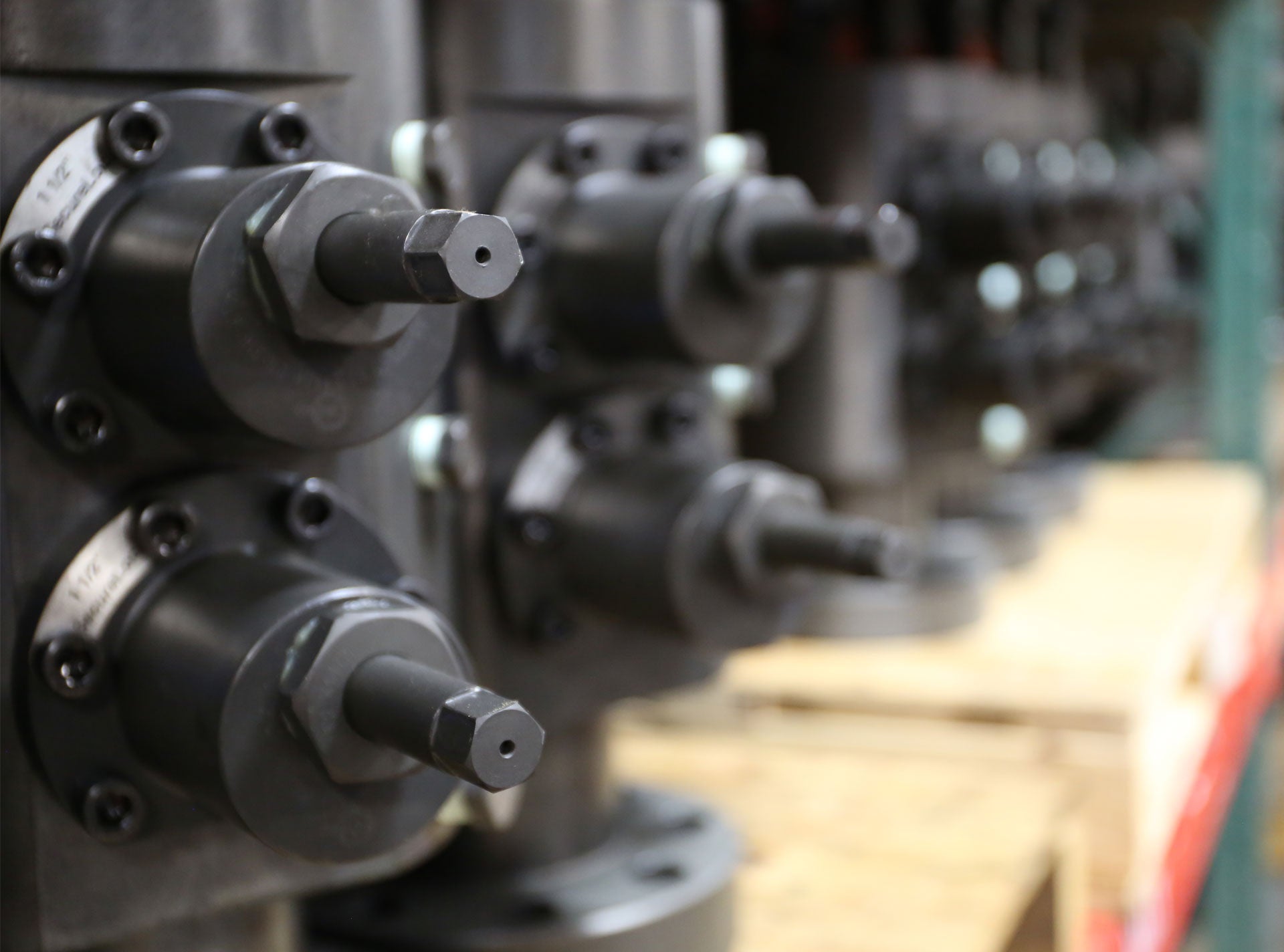

5K Dual-Ram ITBOP
Monitor high-pressure applications and achieve greater well control with our blowout preventers.
-
Description
-
Specifications
We provide an extensive portfolio of blowout preventers for well control and monitoring high-pressure applications with various ram options.
Features/Benefits
- Standard models NACE compliant
- Integral Flow Tee reduces stack height
- Integral tee outlets:
- Standard models have two 2-in. line pipe outlets
- Flanged models have two 2.0625-in. 5,000-studded outlets
- All-steel construction eliminates risk of casting porosity
5k Dual Ram ITBOP
|
Top connection |
2.5625-in. 5K API studded |
|
Bottom connection |
2.5625-in. 5K API flanged |
|
Vertical bore |
2.56 in. |
|
Working pressure |
5,000 psi |
|
Body and cap material |
Alloy steel |
|
Ram material |
Alloy steel |
|
Ram screw and packing gland |
Alloy steel |
|
Ram size options |
Blind, 1.5 in. and 1.5 in. |
|
Ram screw packing ring |
HSN (HNBR) |
|
Side outlet connections |
2-in. LP (standard) or optional 1.3125-in. 5K API studded |
|
Height |
16.5 in. |
|
Weight |
260 lb |
|
Width (rams open/closed) |
23.625 in./20.5 in. |
Note: Rams are directional. Rams cannot be removed and turned upside down to change top by bottom connection orientation.
Raw materials
|
Ram material |
AISI 4130 |
|
Ram seal |
HSN |
|
Maximum temperature |
325 °F (163 °C) |
|
Maximum H2S |
10% |
|
Maximum CO2 |
20% |
Note: Above temperatures are suggested maximum short-term ratings and should not be considered as a continuous operating temperature.
