EH Series Ram Type WCE

Adapted to meet your needs.

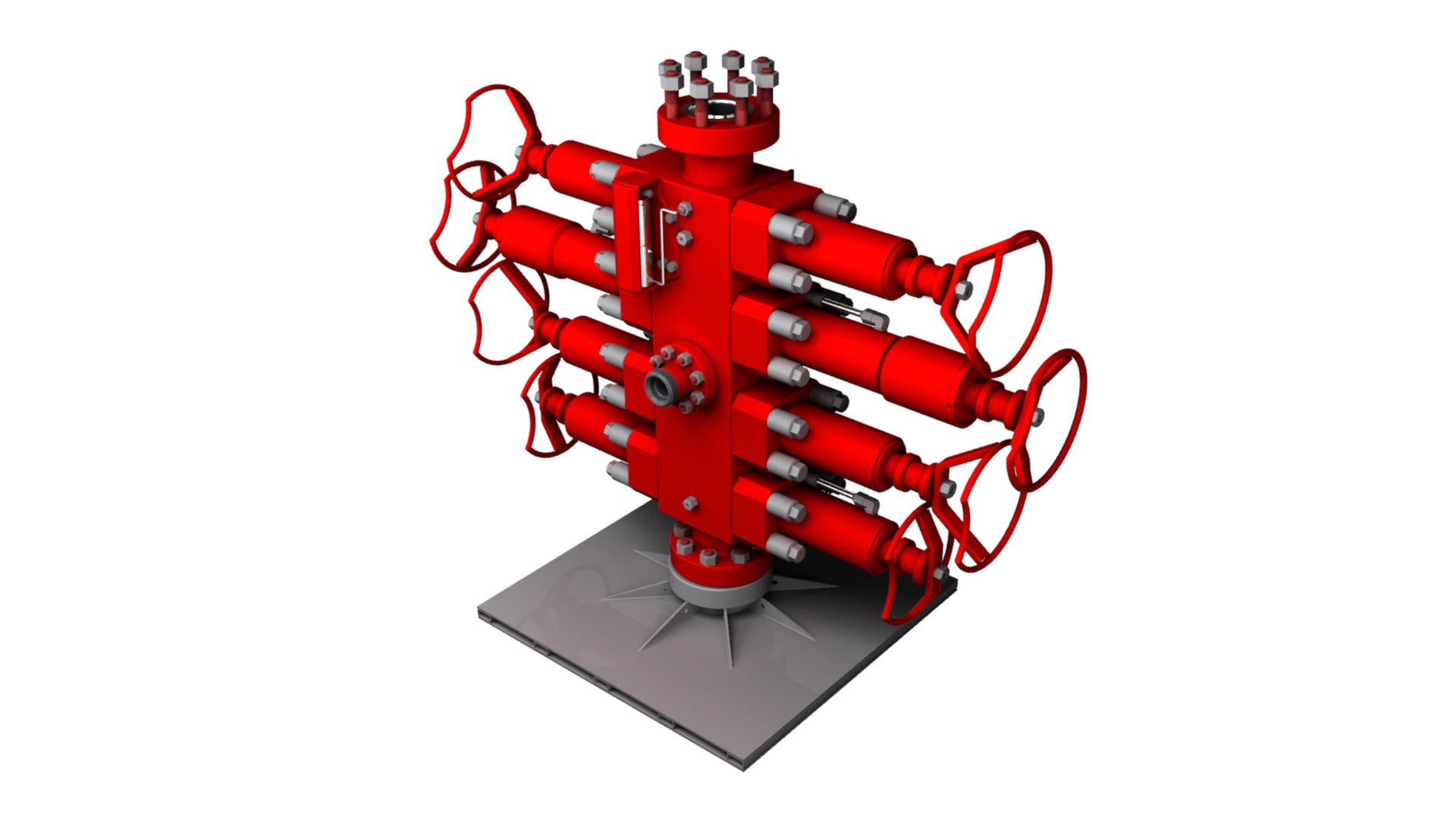

Render of EH Series BOP
  • Description Description
  • Ruler Specifications
  • Resources Resources
Description

Suitable for various applications and working environments, the Texas Oil Tools™ EH series ram type well control equipment (WCE) is the most trusted and reliable in the market. For over 20 years, this “no special tools, teardown” design has reduced non-productive time (NPT) and improved worker safety. The ram type WCE breaks down into small manageable units, and there are no difficult threads to align, making the entire cleaning and maintenance job easily handled by one person.

Engineered with well pressure isolated seals, separate seals for hydraulic and well pressure prevent well pressure from entering the hydraulic system, eliminating potential environmental impacts.

The EH series ram type WCE also features internal hydraulic porting, ram position indicators, and compact integral equalizing valves, all in an economical solution.

We offer the EH series WCE in a wide range of configurations.

Features/Benefits

  • Integral hydraulic porting reduces amount of external hoses
  • Well pressure isolated seals help to eliminate potential environmental impacts
  • Multi-cut super shear blades allow you to shear multiple sizes of tubing with one blade
  • Easy maintenance, no special tools required
  • Replaceable slip inserts allow you to hold multiple sizes of tubing with one ram body

Options

  • Upper test and lift flange
  • 4:1 debooster or pressure transducer
  • Lower test flange
  • Adapter flanges
Specifications

EH Series Ram Type WCE Specifications

Model

Bore

Working pressure

Tubing range

Configuration

Weight

Height

Width

EH24

2.50 in.

10,000 psi

1.00 to 1.75 in.

Single

375 lbs

16.52 in.

47.00 in.

EH24

2.50 in.

10,000 psi

1.00 to 1.75 in.

Quad

1,000 lbs

33.30 in.

61.30 in.

EH34

3.06 in.

10,000 psi

1.00 to 1.75 in.

Single

490 lbs

15.00 in.

47.00 in.

EH34

3.06 in.

10,000 psi

1.00 to 1.75 in.

Quad

1,600 lbs

37.13 in.

61.50 in.

EH44

4.06 in.

10,000 psi

1.00 to 2.375 in.

Single

1,100 lbs

20.25 in.

69.96 in.

EH44

4.06 in.

10,000 psi

1.00 to 2.375 in.

Dual Combi

2,000 lbs

31.75 in.

95.69 in.

EH44

4.06 in.

10,000 psi

1.00 to 2.375 in.

Quad

3,500 lbs

52.30 in.

95.76 in.

EH54

5.12 in.

10,000 psi

1.00 to 3.50 in.

Single

2,500 lbs

25.75 in.

82.53 in.

EH54

5.12 in.

10,000 psi

1.00 to 3.50 in.

Dual Combi

4,375 lbs

41.75 in.

86.40 in.

EH54

5.12 in.

10,000 psi

1.00 to 3.50 in.

Quad

6,995 lbs

63.50 in.

82.53 in.

EH64

6.375 in.

10,000 psi

1.00 to 3.50 in.

Single

2,800 lbs

25.25 in.

85.00 in.

EH64

6.375 in.

10,000 psi

1.00 to 3.50 in.

Dual Combi

4,995 lbs

41.25 in.

85.00 in.

EH64

6.375 in.

10,000 psi

1.00 to 3.50 in.

Triple

6,995 lbs

56.25 in.

85.00 in.

EH74

7.06 in.

10,000 psi

1.25 to 3.50 in.

Single

3,800 lbs

33.12 in.

102.25 in.

EH74

7.06 in.

10,000 psi

1.25 to 3.50 in.

Dual Combi

7,500 lbs

50.00 in.

102.25 in.



Resources
  • EH Series WCE Data Sheet
