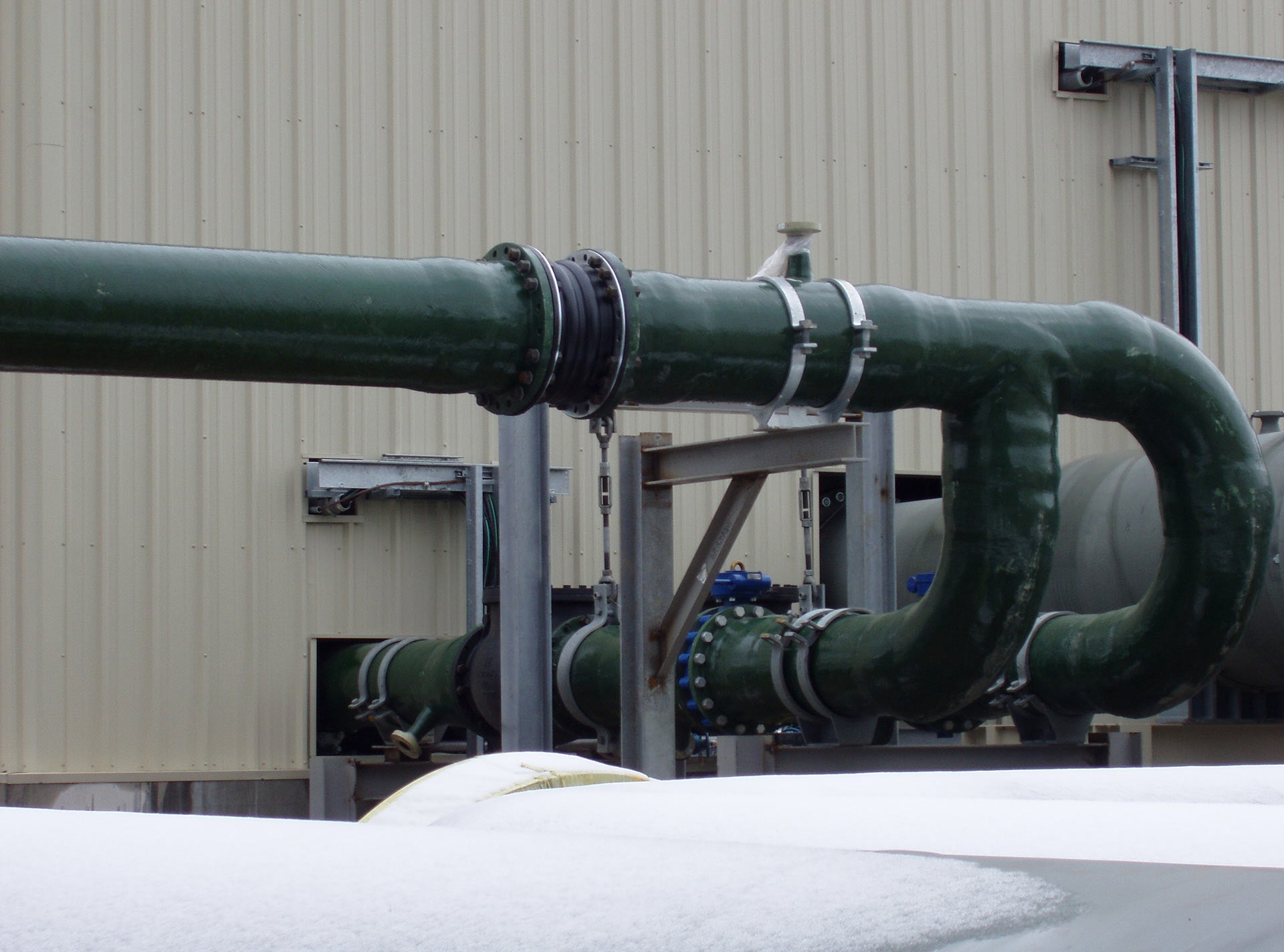

Side view of an assembled F-Chem Fiberglass Pipe

F-Chem Fiberglass Pipe

Custom manufactured pipe and fittings designed to your application

Have a question? Contact us.
  • Description Description
  • Ruler Specifications
  • Resources Resources
Description

F-Chem custom filament-wound piping systems offer the economics of a highly corrosion- and abrasion-resistant pipe that can be designed to incorporate specific physical and mechanical properties. We can custom-design systems for corrosion-resistant barriers, resin systems, and reinforced structural walls, joining techniques and ribbed-wall construction for high vacuum or burial conditions. F-Chem pipe and fittings are available in 14- through 72-in. diameters.

F-Chem pipe is lightweight for ease of installation and offers superior corrosion resistance for long service life. With high flow and low friction ratios, F-Chem also offers the lowest total cost of ownership and ease of repair, modification, and maintenance.

Applications

  • Chemical and industrial
  • Mining
  • Oil and gas
Specifications

F-Chem Fiberglass Pipe Specifications

Size range 14 to 72 in.
Inner corrosion barrier 20 to 250 mil (based on specification and application)
Pressure ratings 150 psig (10 bar)
Temperature range Up to 250 °F (121 °C)
Fittings Flanged or butt and wrap
Chemical service Water, brine, caustics, petroleum products, acids, and many chemical waste streams
Resources
  • F-Chem Fiberglass Pipe Data Sheet
  • F-Chem Piping System Spec Sheet
  • Chemical-Industrial Distribution List
  • Chemical and Industrial Piping Systems Brochure
  • Fiberglass Engineering and Piping Design Guide
  • Mining and Milling Brochure
  • Biosphere 2 (Arizona) Case Study
  • Colorado Waste Treatment Facility Case Study
  • Cooling and Firewater Piping (Philippines) Case Study
  • Municipal WWT Case Study
  • Odor Control Duct (Oklahoma) Case Study
  • Odor Control Duct Project (Texas) Case Study
  • Odor Control Piping (Idaho) Case Study
  • Process Waste Stream (Semiconductor) Case Study
  • Utah Power Plant Case Study
Closeup of an F-Chem fiberglass pipe
