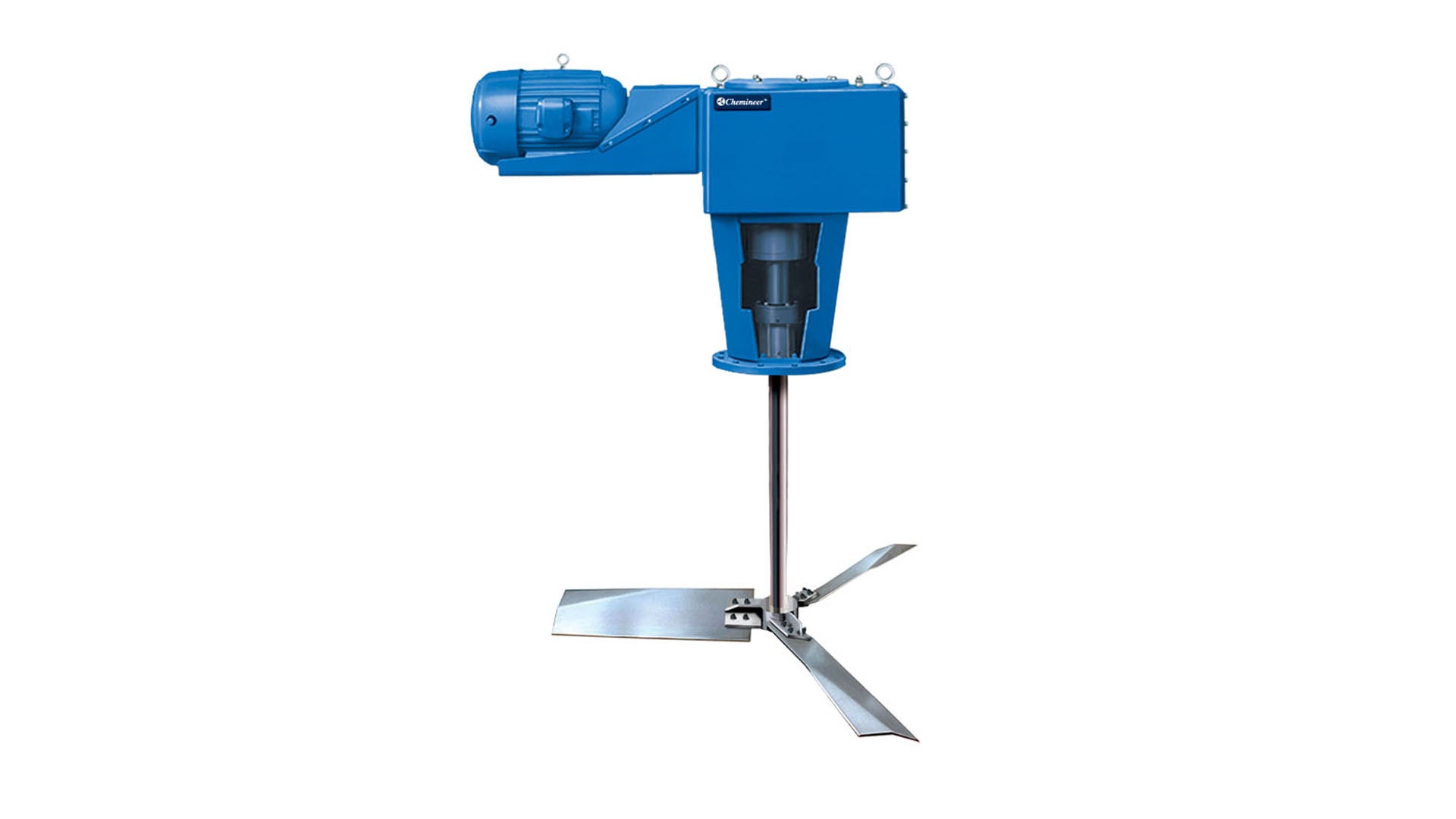

Our HT turbine agitators have earned a worldwide reputation for their long life, flexibility, and durability, making them the preferred agitators for harsh, demanding environments where peak performance is integral.
Our HT turbine agitators are robust, simple, and designed for ease of maintenance.
Our HT turbine agitator is available in 13 standard drive sizes from 1 to 1,000 hp (0.75 to 750 kW)—even more for specialized applications. A wide selection of mounting methods, materials of construction, shaft seals, shafts, impellers, and accessories can provide you with the best turbine agitator for virtually any process.
NSF/ANSI 61 and NSF/ANSI 372 Certified
This product is Listed by UL. Representative samples of this product have been evaluated by UL and meet applicable safety standards.
Chemineer™ HTM Agitators
Our Chemineer HTM is an optional gearbox for high-torque applications and is manufactured specifically for agitator service. Our HTM agitator drive is available in both right-angle and parallel shaft configurations, and it offers many of the same benefits as the HT drive.
Chemineer engineers have supplied nearly every imaginable power source for HT turbine agitators, including steam turbines, fluid drives, internal combustion engines, and others. However, the most common drive option is the standard, industrial foot-mounted motor. Easy to mount, align, and service, these standard motors are NEMA Class B in design with a 1.0 service factor and are available from 1 to 350 hp (0.75 to 250 kW). Speeds are synchronous with the motor used. Motor enclosures are either TEFC or explosion-proof and can meet ATEX standards and requirements. For severe chemical service, motors with Class F insulation and a 1.15 service factor can be specified.
Variable-frequency electronic controls are available for applications requiring responsive speed changes. Tachometers, signal interfaces, and transformers are available. Variable-speed belt drives offer process flexibility with a three-to-one speed range.
HT agitators up to 50 hp (37 kW) are shipped standard with flexible couplings for improved shock and vibration absorption. Other coupling configurations include gear couplings, flexible elements, and disc-type and fluid couplings.
All Chemineer shafting is sized and tested to resist torsional loads and bending moments resulting from hydraulic forces acting on the impeller during mixing. We work with you to determine optimum sizing for your application.
HT agitator shafts are available in diameters of 1.5 to 10 in. (40 to 250 mm) and afford maximum resistance to shock loads. All shafts are straightened to 0.003 in. of total runout per foot (0.25 mm per meter) of shaft length to minimize vibration and maximize seal life. Our experience with special applications enables you to specify practically any machinable alloy or protective coating suited to your process.
Shafts are available in single-piece or rigidly coupled designs. Pipe shafting, ideal for large-diameter shafts, features couplings and impellers welded to the shafting.
Extended keyways for adjusting impeller position offer flexibility in case your processes change. A variety of surface finishes provide protection in harsh service environments.
Easier extension-shaft-to-drive-shaft field assembly is achieved with flanged rigid couplings with removable coupling halves or welded coupling halves. Optional in-tank couplings simplify installation of long shafts
Support of extremely long shafts requires the use of steady bearings. All Chemineer steady bearings have a replaceable wear sleeve that can be fabricated from a variety of materials. Both bracket and tripod-mount designs are available.
Chemineer HT Agitators Brochure
HT and HTM High-Torque Mixers Brochure (English)
Manual 38x HTM Geardive
IO&M Manual 300.02: HTD/HTP Turbine Agitators
Supplement 300.1 HTD/HTP Turbine Agitators Mounting
IO&M Manual 310: HTA/HTAL/HTL Turbine Agitators
Supplement 310.1: HTA/HTAL/HTL HTN/HTNS Turbine Agitators and Mounting
IO&M Manual 320: HTN/HTNS Turbine Agitators
Manual 380: HT Gear Drive Maintenance Case Sizes 1, 2, 3
Manual 381: HT Gear Drive Maintenance Case Sizes 4, 5, 6
Manual 382: HT Gear Drive Maintenance Case Sizes 7, 8, 9
Manual 383: HT Gear Drive Maintenance Case Size 10
Manual 384: HT Gear Drive Maintenance Case Sizes 11, 12, 13
Supplement 6: HT Gear Drive Case Sizes 3, 6 Triple Reduction
