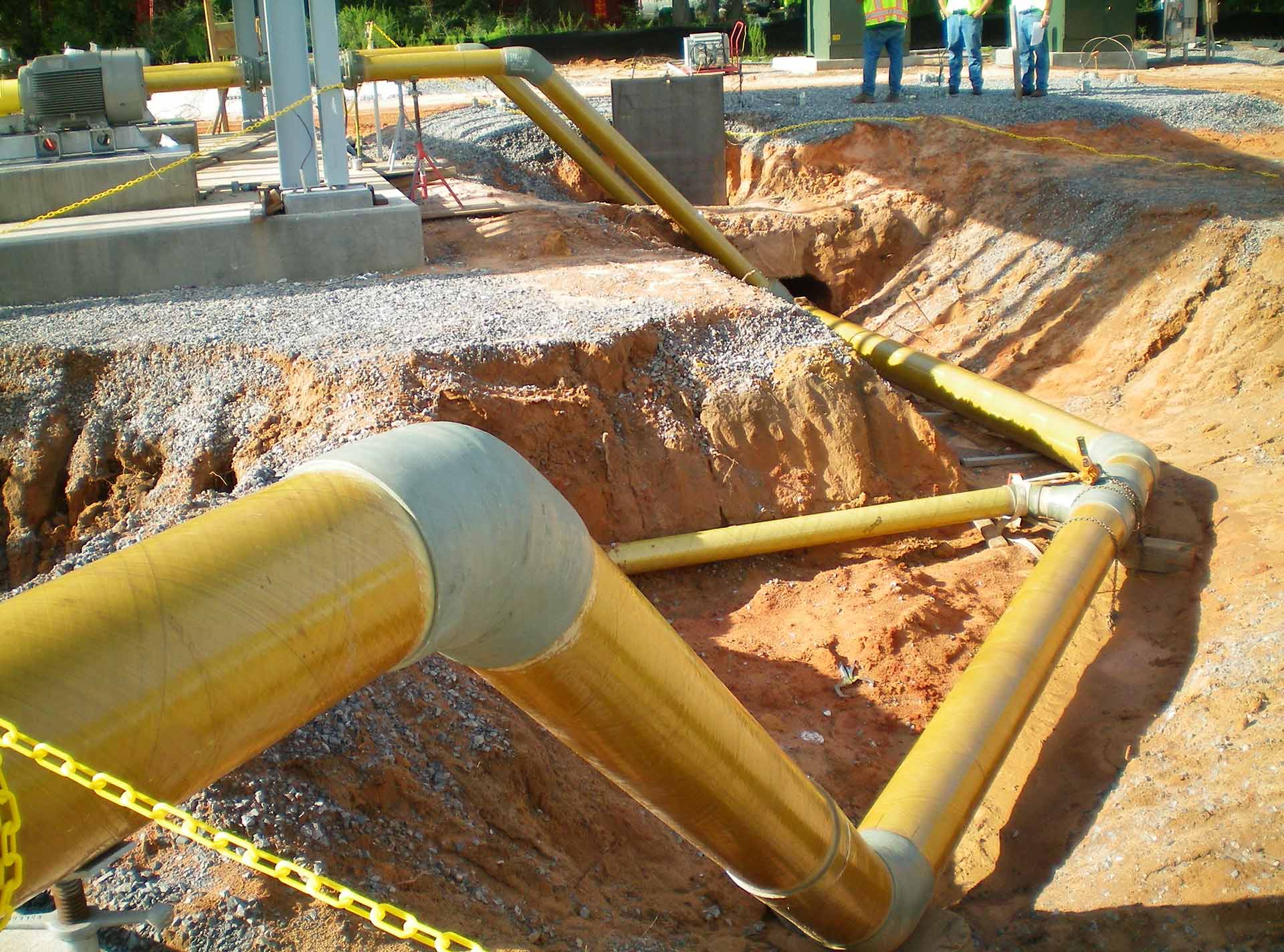

A system of Red Thread HP Fiberglass Pipe laid throughout a ditch

Red Thread HP Fiberglass Pipe

With long service life, light weight, and corrosion resistance, Red Thread HP provides improved flow characteristics.

  • Description Description
  • Ruler Specifications
  • Resources Resources
Description

Red Thread™ HP pipe is a filament-wound product using epoxy resins and continuous glass filaments with a resin-rich interior surface. Pipe and fittings are available in 2- through 24-in. diameters with pressure ratings up to 450 psig static at a maximum operating temperature of 210 °F. Diameters up to 36 in. are available upon request. Compatible epoxy fittings are manufactured with the same chemical and temperature capabilities as the pipe. Depending on the part and size, fittings will be compression molded, contact molded, hand fabricated, or filament wound.

Applications

  • Oil and gas
  • Chemical and industrial
  • Mining
Specifications

Red Thread HP 16 Specifications

Size range 2 to 36 in.
Design Available as API 15LR
Inner corrosion barrier Resin-rich
Pressure ratings 225 to 450 psig
Construction Filament-wound with amine-cured epoxy resins and fiberglass roving
Temperature range Up to 210 °F (99 °C)
Fittings Threaded and bonded (TAB) or matched taper bell and spigot adhesive bonded
Chemical service Saltwater, CO2, crude oil, gas, light chemical, salts, solvents, and pH 2-13 solutions

Red Thread HP 25 Specifications

Size range 2 to 24 in.
Design Available as API 15LR
Inner corrosion barrier Resin-rich
Pressure ratings Up to 362 psig
Construction Filament-wound with amine-cured epoxy resins and fiberglass roving
Temperature range Up to 210 °F (99 °C)
Fittings TAB or matched taper bell and spigot adhesive bonded
Chemical service Saltwater, CO2, crude oil, gas, light chemical, salts, solvents, and pH 2-13 solutions

Red Thread HP FM Specifications

Size range 4 to 24 in.
Inner corrosion barrier Resin-rich
Pressure ratings Up to 200 psig
Fittings TAB or bell and spigot
Chemical service Underground fire protection systems
Resources
  • HP 16 Epoxy Fittings Data Sheet
  • HP 16 Large Diameter (LD) Epoxy Fittings Data Sheet
  • HP 25 Epoxy Fittings Data Sheet
  • HP 32/40 Epoxy Fittings Data Sheet
  • Red Thread HP 16 Data Sheet
  • Red Thread HP 20 Data Sheet
  • Red Thread HP 25 Data Sheet
  • Chemical-Industrial Distribution List
A Red Thread HP Fiberglass pipe lining the vertical side of a building
A Red Thread HP Fiberglass pipeline extending toward the horizon
A Red Thread HP Fiberglass Pipe system
