Tri-J Connector

The Tri-J tieback receptacle and seal assembly provides a reliable, field-proven option for running lower completions on a liner.

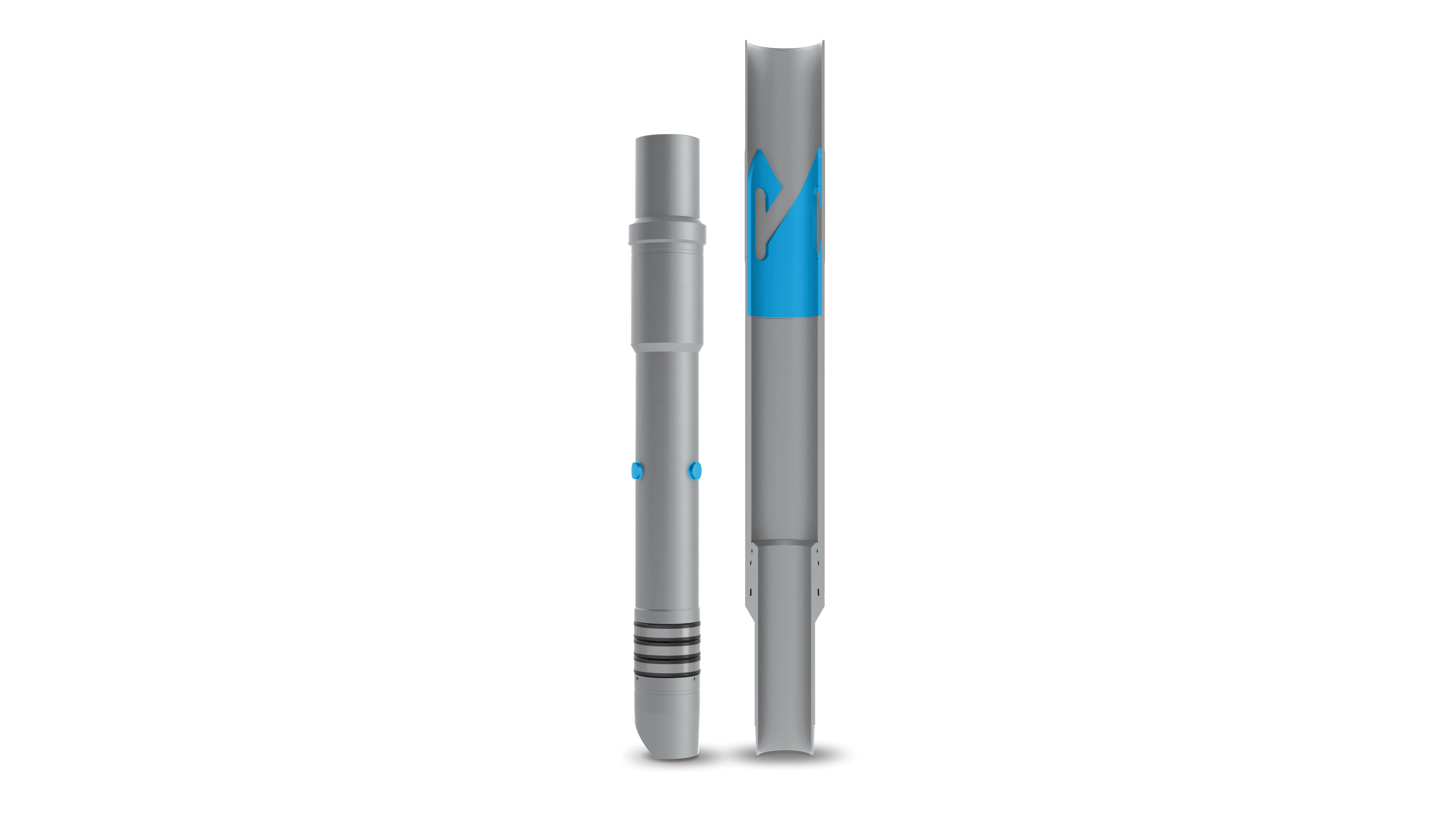

Render of  Tri-JConnector
  • Description Description
  • Ruler Specifications
  • Resources Resources
Description

The Tri-J tieback receptacle and seal assembly provides a reliable, field-proven option for running lower completions on a liner. The design incorporates a Tri-J tieback receptacle that remains downhole as well as a reusable seal assembly that allows equipment to be run in hole and reconnected for the stimulation and production operations.

The Tri-J is disconnected by applying compression, followed by a one-quarter right-hand turn when picking up. Upon re-entry into the wellbore, the seal assembly is reconnected by setting down on the tieback receptacle to latch in.

Features

  • Fully compatible with lower completion technologies
  • Simple operation for reconnecting and stimulating
  • Proven seal assembly that maintains integrity up to 10,000 psi (69 MPa)

Benefits

  • Full-bore design does not add any restrictions to the completed liner
  • Simple design saves time and money during installation, stimulation, and production operations

Applications

  • Openhole and cemented liner completions
  • Openhole and cemented sleeve systems
  • High differential pressure applications that require wellbore integrity up to 10,000 psi (69 MPa)
Specifications

Tri-J Connector Specifications

Tri-J 450
OD  6.000 in. (152.40 mm)
Body ID 4.000 in. (101.60 mm)
Length 62.74 in. (1.594 mm)
Tensile rating 200,000 lbf (88 960 daN)
Internal pressure rating 10,000 psi (69 000 kPa)
Connections LTC standard
